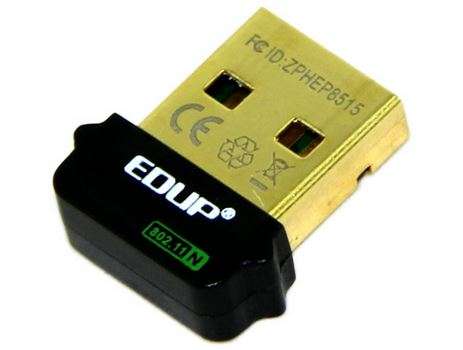

Miniature WiFi (802.11b/g/n) USB Module

_^DESCRIPTION

• ^{RTl8192cu Chipset}
• ^{Sticks out 8mm (0.3") beyond USB port}
• ^{Weight: 2.17g}
• ^{Wireless Standards: IEEE 802.11n (draft), IEEE 802.11g, IEEE 802.11b}
• ^{Host Interface: High speed USB2.0/1.1 interface}
• ^{Data Rate: 802.11n: up to 150Mbps (downlink) and up to 150Mbps (uplink) , 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback, 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback}
• ^{Frequency Band: 2.4GHz ISM (Industrial Scientific Medical) Band/li>}
• ^{Chipset: Realtek}
• ^{RF Frequency: 2412 ~ 2462 MHz (North America), 2412 ~ 2472 MHz (Europe), 2412 ~ 2484 MHz (Japan)}
• ^{Radio Channel: 1 ~ 14 channels (Universal Domain Selection)}
• ^{Range Coverage: Up to 3 times farther range than 802.11g}
• ^{Antenna Type: Integrated Antenna}
• ^{Roaming: Full mobility and seamless roaming from cell to cell}
• ^{RF Output Power: 13 ~17 dBm (Typical)}
• ^{Modulation: 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM, 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM, 11b: DQPSK, DBPSK, DSSS, CCK}
• ^{Data Security: 64/128-bit WEP Encryption}
• ^{WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES}
• ^{Network: Auto-switch to use 802.11n or 802.11g or 802.11b mode}
• ^{Supports Ad-Hoc, Infrastructure WLAN network, Wireless roaming, Data rate auto fall-back under noisy environment or longer range distance, Site Survey with Profile function}
• ^{Configuration & Management: Plug-and-Play setup and installation, Management Utility supports 2000 / XP/ Vista}
• ^{Media Access Control CSMA/CA with ACK}
• ^{LED Indicator Link/Active ( Green )}
• ^{Operating Temperature 0°C to 40°C}
• ^{Storage Temperature -20°C to 75°C}
• ^{Operating Humidity 10% ~ 90% (Non Condensing)}
• ^{Storage Humidity 5% ~ 95% (Non Condensing)}
• ^{Requirements Available USB 2.0 port}

_{​Please Note: Locally stocked, Available for immediate shipping!}
