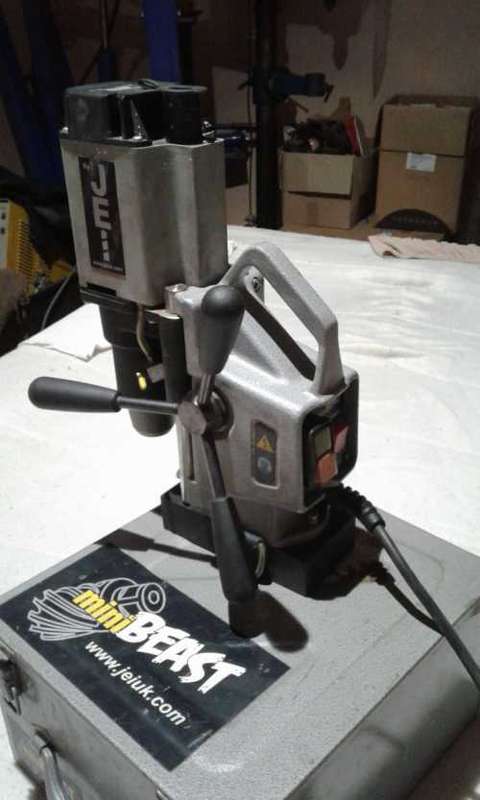

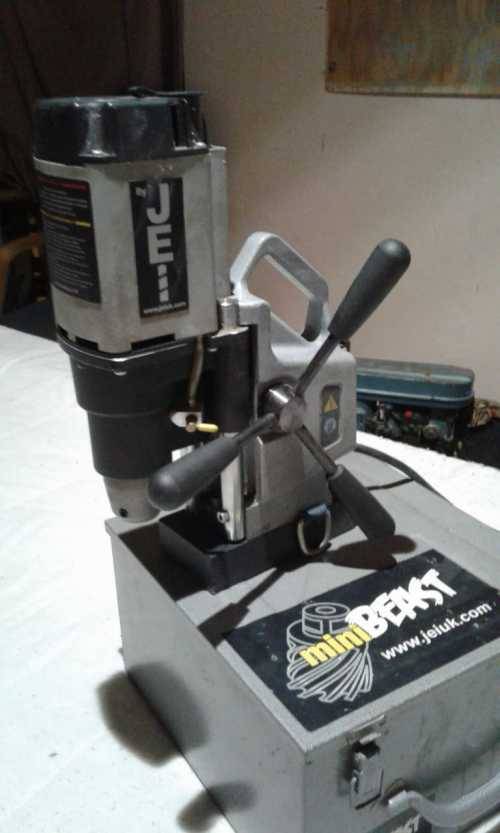

MINIBEAST JM 201 Mag Drill

 .



Mag drill, compact lightweight unit that has the advantage of no external cables between motor and control box, the most common cause of breakdowns with Magnetic drills is damage to cables. The unit has an inbuilt coolant reservoir which unlike alternative brands with external coolant reservoirs cannot become accidently damaged with general use.



The perfect machine for cutting up to 30mm holes. Supplied in sturdy metal case.



Items is almost brand new



Weighs only 10 Kilograms

Max 30mm diameter bit

50mm cutting depth capacity

Internal cooling system with through spindle cooling for better cutting performance

Self correcting Gib adjustment

Robust cast design

Service friendly maintenance parts

Hidden motor cable - can't be used as a handle



Specification:

Power Supply : 110/230v / 60hZ 920W

Load Speed : 350 rpm

Arbor Bore : 19.05mm (3/4”)

Height Max/Min : 377/307mm (14-3/4” / 12”)

Width : 166mm ( 6-1/2”)

Length : 240mm (9-1/2”)

Magnet Base Dimensions : 80x160mm (3.150” x 6.3”)

Magnet Dead Lift (on 25mm plate) : 9500N

Cutter Diameter (Maximum) : 30mm (1-3/16”)

Cutter Depth of Cut (Maximum) : 52mm (2”)

C/L Pilot to Magnet Face : 39mm (1-1/2”)

C/L Pilot to Motor Face : 37.5mm (1-1/2”)

Weight : 10.65kg (23.4Llbs
