Description:

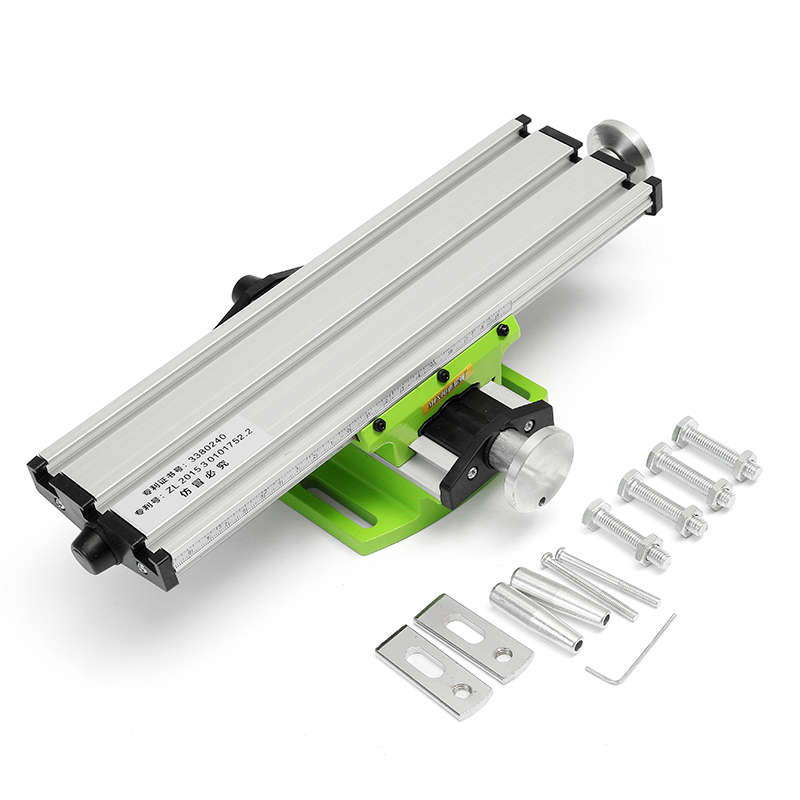

MINIQ BG6300 Miniature Precision Multifunction Milling Machine Bench Drill Vise Fixture Worktable Mini Multifunction Table
Video Show:
Here are the other tools shown in the video:
Bench Drill Stand/Press Mini Electric Drill Carrier Bracket 90 Degree Mini Electric Rotating Fixed Frame
Mini Carving Bench Clamp Micro Hand Carving Clip Tool:
Specification:Model: BG6300
Table size: 300 * 90mm
X -axis travel: 200mm
Y-axis travel: 50mm
X Y-axis scale adjustment:
1 circle = 1.25mm
A subdivision marks= 0.05mm
The lead screws are M8X1.25
Features:
The table is suitable for Mini Drill and drill bracket series.
It can also apply to other suitable machine.
The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.
The working table with three T shaped groove, standard size is 15x8x6mm.
Scale is in front of the movable positioning.
Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.
The X axis Y axis distance is 200mm, the stroke is 50mm.
Working table size is 310x90mm and the height of 76mm, including two working clamp.
Package Included:
1x Mini Multifunction Table
More Details:
English Manual:
PAGE0:
Dear Customer: Hello!
First of all thank you for purchasing the company's products, hoping to give you the work and life to bring greater convenience and endless fun! Before using the technology, please be sure to read this manual in detail, you must follow the instructions in the instructions required for safe operation.
The multi-purpose table with bench drill can be used as a milling machine to achieve high precision coordinate drilling and small milling.
When using this table, be sure to follow the appropriate safety practices for bench drills and milling machines, and keep in mind that the coordinate table is a sophisticated, miniature, easily damaged tool, so be sure to keep your care , And do the necessary protective measures to ensure the use of safety. please
PAGE1:
Mini Multifunction Workbench User's Manual
Technical Data
Model BG-6300
Worktable Size 310x90
X-Axis Travel 200...
Y-Axis Stroke 50...
Rotation Knob One-way stroke 1,25 1.5...
Clamping groove pitch 34...
Note: The above data unit is mm Please check the product packaging is intact, open the package, the mini multi-purpose table placed on the flat table (according to (Figure 1) first familiar with the important components of the table (6300 example).
Figure 1
