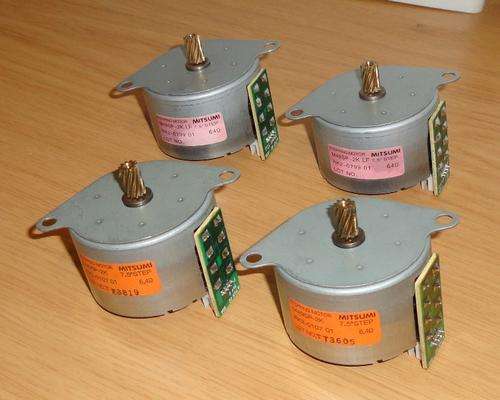

Mitsumi M49SP-2K 7.5 Degree Stepper Motor (24v)
Secondhand
R50.00
Closed
20 Nov 15 09:43
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 2 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
Secondhand
Location
South Africa
Customer ratings:
Product code
M49SP-2K
Bob Shop ID
206916720
Used Stock! Pulled out of working, obsolete printers.
The Mitsumi M49SP-2K has acquired the highest output torque among the outer diameter 49mm model series. In addition, Mitsumi's unique torque characteristics are realized in response to a wide range of needs.
Uses: Printers, multifunction machines, copy machines, CNC, Etc.
Features:
- Step angle : 7.5 Degree
- Superior running quietness and stability.
- Excellent responsiveness acquired
Specifications:
- Rated Voltage: DC 24V
- Working Voltage: DC 21.6~26.4V
- Rated Current/Phase: 1A (PEAK)
- No. of Phase: 2 Phase
- Coil DC Resistance: 6.4 Ohm
- Step Angle: 7.5 Degree
- Excitation Method: 2-2 Phase excitation (Bipolar driving)
- Insulation Class: Class E insulation
- Holding Torque: 134mN·m
- Pull-out Torque: 100mN·m/1100pps
- Pull-in Torque: 102mN·m/250pps
- Max. Pull-out Pulse Rate: 2150pps
- Max. Pull-in Pulse Rate: 430pps
