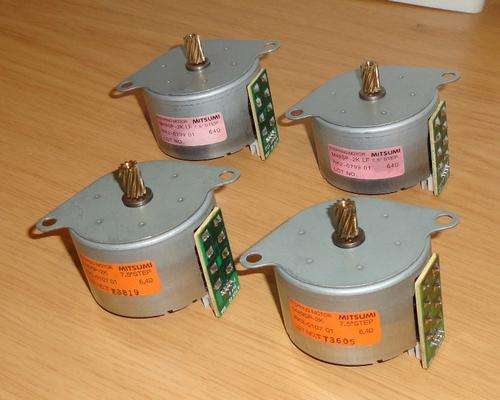

Mitsumi M49SP-2K 7.5 Degree Stepper Motor (24v)

Used Stock! Pulled out of working, obsolete printers.

The Mitsumi M49SP-2K has acquired the highest output torque among the outer diameter 49mm model series. In addition, Mitsumi's unique torque characteristics are realized in response to a wide range of needs.

Uses: Printers, multifunction machines, copy machines, CNC, Etc.

Features:

• Step angle : 7.5 Degree
• Superior running quietness and stability.
• Excellent responsiveness acquired

Specifications:

• Rated Voltage: DC 24V
• Working Voltage: DC 21.6~26.4V
• Rated Current/Phase: 1A (PEAK)
• No. of Phase: 2 Phase
• Coil DC Resistance: 6.4 Ohm
• Step Angle: 7.5 Degree
• Excitation Method: 2-2 Phase excitation (Bipolar driving)
• Insulation Class: Class E insulation
• Holding Torque: 134mN·m
• Pull-out Torque: 100mN·m/1100pps
• Pull-in Torque: 102mN·m/250pps
• Max. Pull-out Pulse Rate: 2150pps
• Max. Pull-in Pulse Rate: 430pps
