MK10 Extruder Kit 1.75MM/0.2 nozzles:

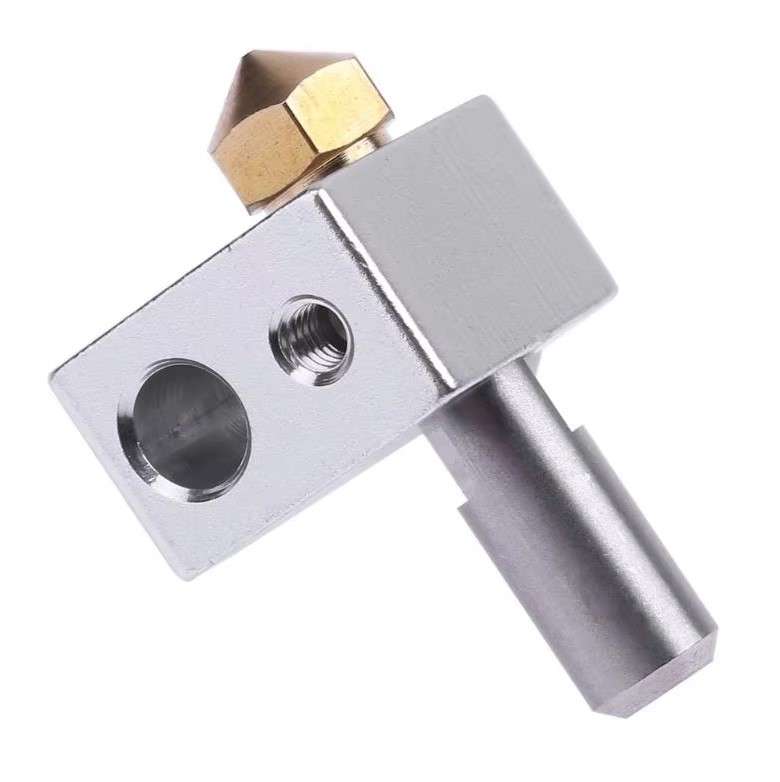

This is a basic package that includes one 20x20x10 mm aluminium heat block, one 0.2 mm brass nozzle with M7 thread, one 30 x 2 mm throat with PTFE for 1.75 mm filament, and one M3 screw. This is a very basic package that requires you to tighten a heat cartridge with the M3 nut (Black) and a thermistor of your choice into the M3 holes.
Specifications:
Nozzle:
Compatibility: MK10 hot end M7 thread aluminium heater block
Output diameter: 0.2mm
Input diameter: 1.75mm
Size: M7
Material: Brass
Throat:
Compatibility: MK10 hot end M7 thread aluminium heater block, MK10 aluminium cooling block
Filament diameter: 1.75mm
Size: lower thread M7, upper diameter 7.8mm
Length: 26mm
Material: Stainless steel with 2mmX4mm PTFE tube
Aluminium Heater Block:
Compatibility: MK10 M7 nozzle, MK10 M7 throat, 6mm cartridge heater, M3 or M4 thermocouples.
Shape size: 20mm*20mm*13mm.
Material: Aluminium alloy.
