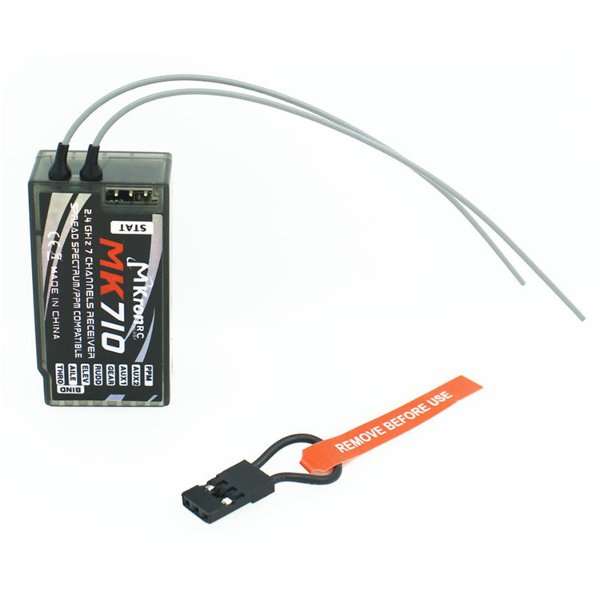

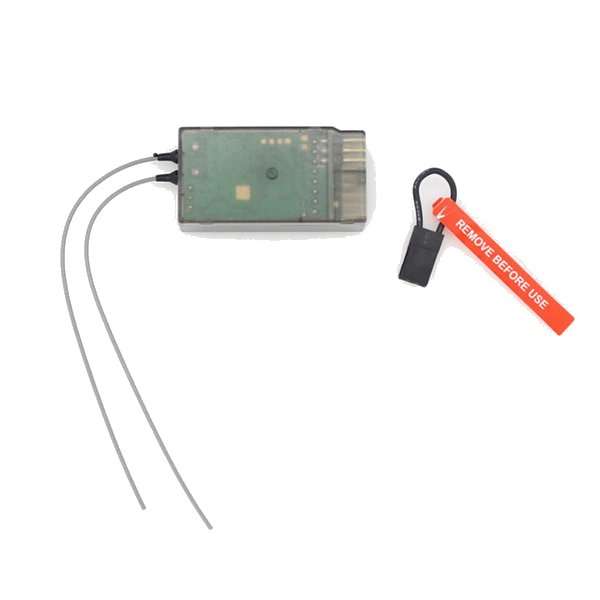

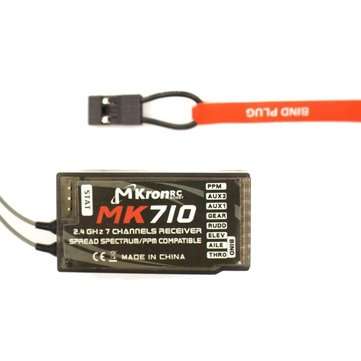

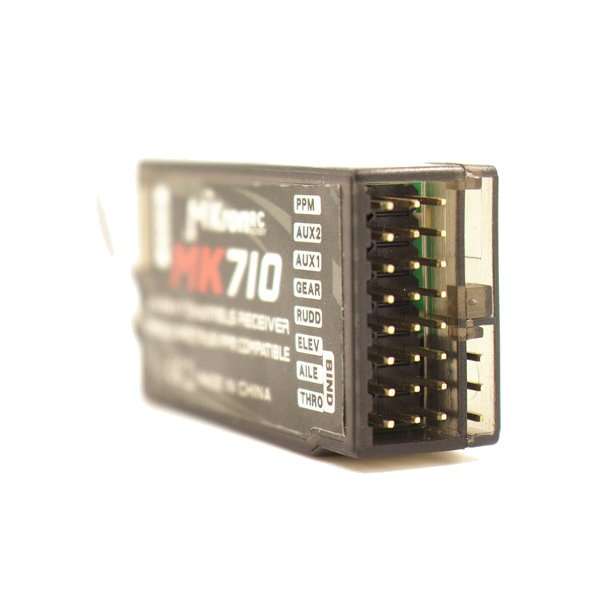

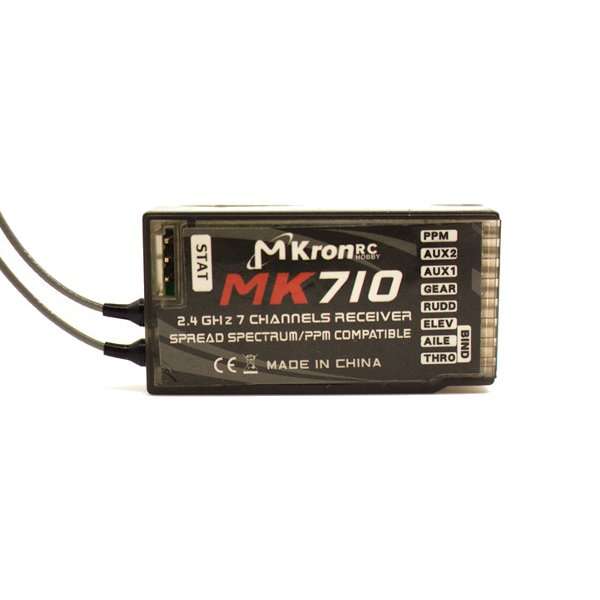

Mkron 2.4G 7CH MK710 DSM2 DSMX Compatible Receiver Support PPM Output

Mkron 2.4G 7CH MK710 DSM2 DSMX Compatible Receiver Support PPM Output











Description:
Brand Name: Mkron
Item Name: MK710
Band: 2.4GHz
Channel: 7
Operating Voltage: 4.8V-8.4V
Operating Current: 45mA
Range: 1500M+/full
Response Speed: 22ms
Dimension: 48 x 25 x 14mm
Weight: 15g
Resolution: 2048

Compatibility:
Compatible with Spektrum and JR remote control system, including JR12X, 11X, X9503, X9303, SpektrumDX10t, DX8, DX7s, DX7se, DX6i,DX5e etc.,

Features:
Adopt? DSM2? and DSMX technology
Special high gain antenna,with high gain amplifier,stable and long distance
Support PPM channel
Extra Satellite is not needed,more convenient.
Compatible with Spektrum and JR transmitter,suitable for RC helicopter/quadcopter/airplane

How To Bind
a: Plug the code bar to BIND CON on the receiver
b: Electricity to receiver
c: Hold down the code match switch on
d: Receiver lights flash to normally on, means the code match success
e: Unplug the code bar

General Notes:
1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product. The Spektrum and DSM2/X brand is a trademark of Horizons Hobbies USA.
2) This is not an underground black market fakes Spektrum product.
3) Only one bind procedure is required on a new receiver.? Repetitive binding provides no extra security.? Always remember to remove the binding harness after successful bind is completed

Package Included:
1x MK710 receiver
1x Bind plug


, , , ,
