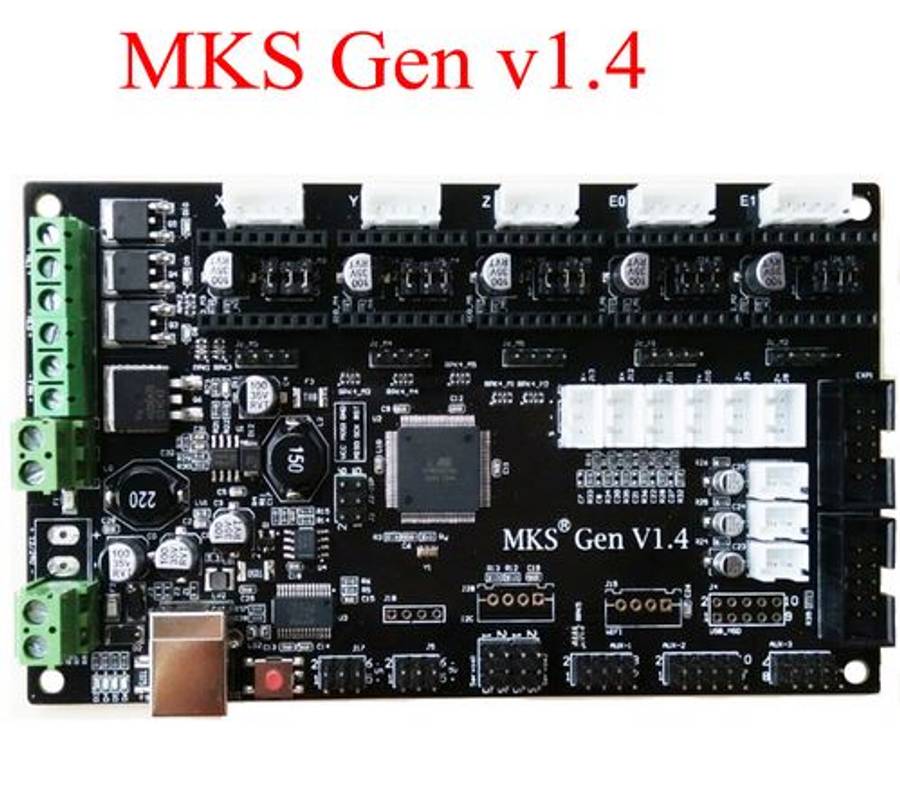

MKS Gen V1.4 Printer Controller Board

MKS Gen V1.4 Printer Controller Board

Product Description

This is the latest MKS Gen V1.4 Printer Controller Board. A combination of the Arduino Mega R2560 and Ramps 1.4 board. We now have the V1.4 available in South Africa!

Product Features

• _{Mega 2560 and ramps1.4 set on a board, to solve complicated Ramps1.4 combination of interfaces, the problem of failure is prone.}
• _{Replaces the motor drive, drive and support 4988 8825 drive.}
• _{Circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.}
• _{It is now using high-quality MOSFET, and better heat dissipation.}
• _{A dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.}
• _{Supports 24V input power under the same system can be hot-bed current is reduced to 1/4, an effective solution to the hot bed MOS pipe heat problems.}
• _{Firmware can use open source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4.}
• _{Reserved Ramps1.4 on Servos, AUX-1, AUX-2 interface that provides three 5V output, three 12V outputs.}

Locally Stocked, Available for Immediate Shipping!

For Support and Pin Layouts, Please feel free to contact us and we will gladly assist you!
