MKS OSC Stepper Motor Driving Controller Pulse PWM Speed Reversing Control For
New
30 were available
Indicative market price:
R399.00
R179.35
55% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

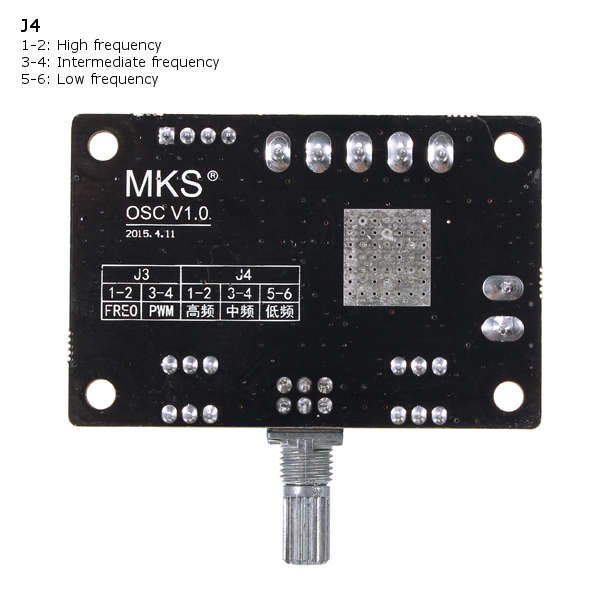

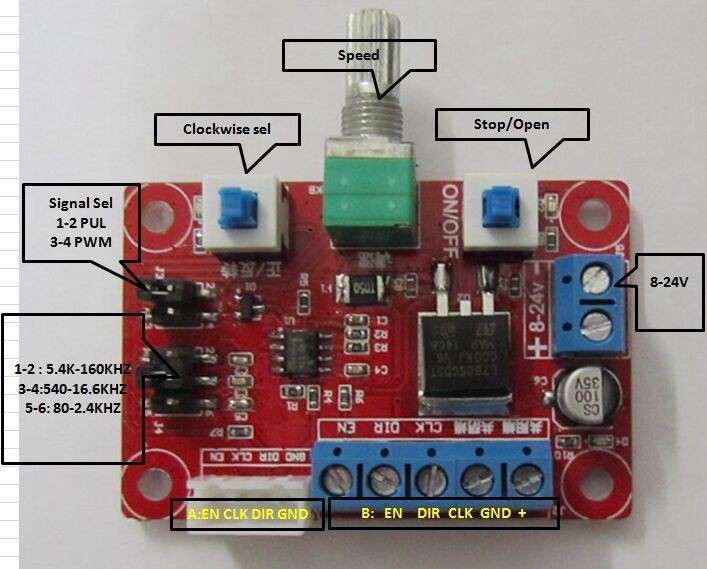

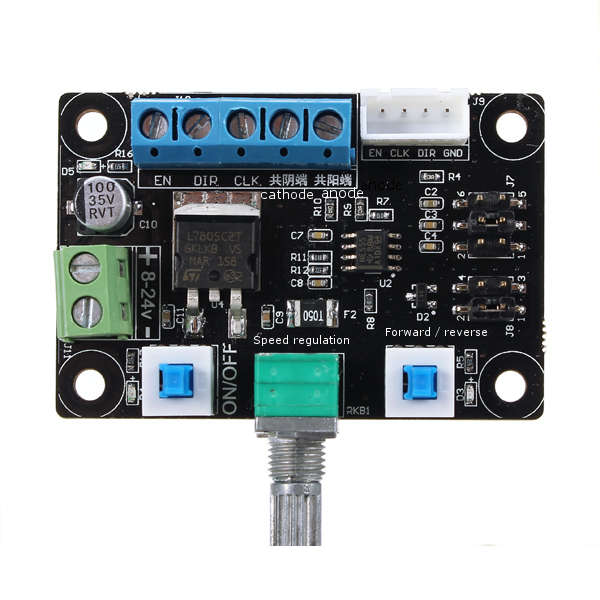

Package weight: 0.02 kg Product Introduction: 1. This module is a pulse generating module, which supplies as a signal for stepper drivers. To control the stepper motor, it must be equipped with the driver. 2. Easy controller + stepper driver + stepper motor + DC power composed a simple control platform. 3. The controller consists of 3 kinds of frequency signal, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chose by skipping stitch. 4. Support generating a pulse and PWM signal ,support skipping stitch choice. 5. Frequency measurement: the two ports of PUL and common-cathode (or common anode) can be measured . Different stepping motor driver different port sign, but same function EN=ENA=FREE Enable PUL=PULS=CLK Pulse DIR=CW=CWW Direction Common anode connection (connect with B) EN+ PUL+ DIR+ all link together to common anode port EN- connect to EN PUL- connect to CLK DIR- connect to DIR Common cathode connection (connect with B) EN- PUL- DIR- all link together to common cathode port EN+ connect to EN PUL+ connect to CLK DIR+ connect to DIR Package includes: 1 x Stepper Motor Driving Controller
