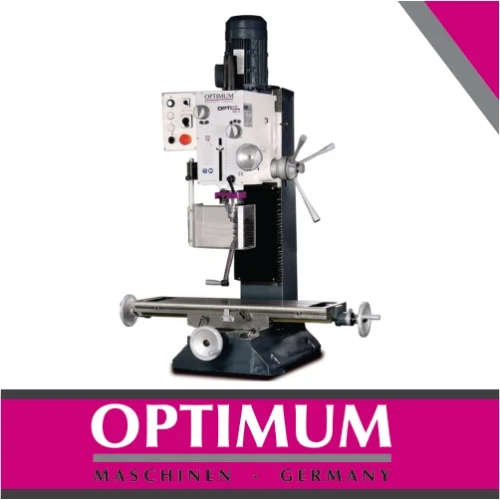

MILLING MACHINE OPTImill MH 22VD
Drilling-milling machine
Milling machines with 3 axes position display
Technical Specifications
length 945 mm
Width depth 650 mm
height 950 mm
Weight (net) 120 kg
Power drive motor 0.95 kW
Supply voltage 230V
Phase (s) 1 Ph
Current Type ~
power frequency 50 Hz
Knife head size max. 52 mm
End mill size max. 12 mm
Vertical spindle projection 170 mm
Vertical spindle Spindle mount BT 20
Vertical spindle speed range 90 3000 min-1
Vertical spindle Number of speed ranges 2
Vertical spindle Control of the speed control electronic
Horizontal milling length 700 mm
Horizontal milling width 180 mm
Distance vertical spindle horizontal milling min. 370 mm
Distance vertical spindle horizontal milling table max. 370 mm
Horizontal milling T-slots size 12 mm
Horizontal milling T-slots number 3
Horizontal milling T-slots clearance 63 mm
Horizontal milling load max. 50 kg
Traverse X-axis manually 480 mm
Travel Y-axis manually 175 mm
Travel Z-axis manually 370 mm
Drilling capacity steel (S235JR) 20 mm
Continuous drilling capacity steel (S235JR) 16 mm
Vertical spindle Turning area milling head Z X plane 90 degrees
Vertical spindle Pinole diameter 60 mm
Vertical spindle Quill stroke 50 mm
description
Stable drilling and milling machine with electronically infinitely variable drive. MH 22VD with digital position indicator DRO 5
Feed spindles adjustable without backlash by adjustable spindle nuts
Stable dovetail guide, precision ground and scraped with adjustable wedges
EMC filter class B (use in private households)
All guides are ground and visibly scraped (oil pockets for lubrication)
Precisely processed
Double-row angular contact ball bearings in the axles, adjustable without backlash
Safety electronics in 24 Volt version
Bellows as guide protection
Forward / reverse operation
Drilling and milling head can be tilted by ± 900, for milling and drilling work in any angular position
machine lamp
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
Easy to read speed display and depth display, switchable mm / inch
fine feed
MH 22VD
Includes digital position indicator DRO5 and magnetic tapes in all three axes
Room amenities
control electronics
Integrated relay control
engine
Two-stage gear ratio for powerful transmission of engine power
Powerful DC motor with permanent current monitoring
Z-pillar and X-axis
Prepared groove for subsequent mounting of magnetic tapes
control panel
User-friendly membrane keyboard
Easy to read digital speed display
clear
Emergency stop impact switch
Tapered roller bearings
High concentricity 0.015 mm measured in the quill
pillar
Reversible on both sides by 30 mm
With swiveled head, longer travel paths and centric machining of the workpiece possible
Back with hole
Slightly oil the trapezoidal spindle or grease of the ballscrews
cross table
Solid
Precise surface finish
With T-slots
Adjustable wedges
Adjustable via 3 hand wheels
Adjustable end stops
Y-axis
Prepared groove for subsequent mounting of magnetic tapes
