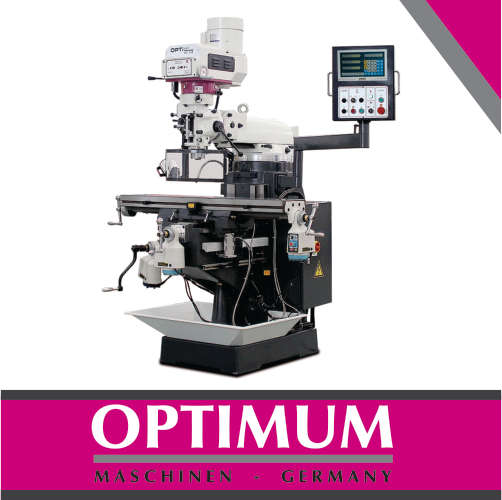

Drilling-milling machine
Technical Specifications
length 2,000 mm
Width depth 1,600 mm
height 2,010 mm
Weight (net) 1,000 kg
Total connected value 3 kW
Supply voltage 400V
Phase (s) 3 Ph
Current Type ~
power frequency 50 Hz
Knife head size max. 76 mm
End mill size max. 25 mm
Vertical spindle projection 15-415 mm
Vertical spindle Spindle mount ISO 40 DIN 2080
Vertical spindle speed range 60 4,200 min-1
Vertical spindle Number of speed ranges 2
Vertical spindle Control of the speed control mechanically stepless
Horizontal milling length 230 mm
Horizontal milling width 1,246 mm
Distance vertical spindle horizontal milling table max. 405 mm
Horizontal milling T-slots size 16 mm
Horizontal milling T-slots number 3
Horizontal milling T-slots clearance 63 mm
Horizontal milling load max. 200 kg
Vertical spindle Power Drive motor Normal operation 2.2 kW
Traverse X-axis manually 690 mm
Travel Y-axis manually 310 mm
Travel Z-axis manually 390 mm
Traverse X-axis automatically 610 mm
Traverse Y-axis automatically 230 mm
Traverse Z-axis automatically 310 mm
Drilling capacity steel (S235JR) 24 mm
Continuous drilling capacity steel (S235JR) 20 mm
Vertical spindle Turning area milling head X Y plane 90 degrees
Vertical spindle Turning area milling head Z X plane 45 degrees
Vertical spindle Pinole diameter 86 mm
Vertical spindle Quill stroke 127 mm
Vertical spindle quill feed 0.04 / 0.08 / 0.15 mm / rev
Vertical spindle Milling head Travel Z-axis 312 mm
description
Multifunctional drilling and milling machines for professional use. Mechanically steplessly adjustable drive
Heavy, solid design made of high-quality Meehanite cast iron
High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
Automatic quill feed
Right / left rotation for thread cutting
X- and Z-axis with adjustable 55 ° dovetail guide
Y-axis with flat guide
Coolant system
Right and left rotation
Automatic quill feed, 3-stage 0.04 0.15 mm / rev
Precision micro feed
Milling spindle with precision bearing
Mechanical spindle brake
Drilling depth scale and stroke
Smooth-running, precise cross table with T-slots and coolant channel
Motor feed in the X, Y and Z axes
Integrated digital position indicator DPA 2000
Swiveling arm with integrated control panel
Central lubrication
MF 4V-B:
Load capacity cross table 300 kg
Large travel: X / Y / Z axis automatically 820 mm / 320 mm / 340 mm
Room amenities
control panel
Integrated control panel
Integrated digital position indicator DPA 2000 with speed display
Drill-mill head
Tiltable ± 45 °
Spindle speeds
Stepless speed control
Especially large speed range
depth stop
Adjustable with millimeter scale
Front readable
windscreen
adjustable height
Large dimensions
cross table
Solid
Large dimensions
Precise surface finish
Motorized table height adjustment Z-axis
Adjustable end stops
Y and Z axis
Motorized table feed
X axis
Motorized table feed
Stepless speed control
Rapid
Forward / reverse operation
Delivery Information
operating tool
ON ORDER ONLY
