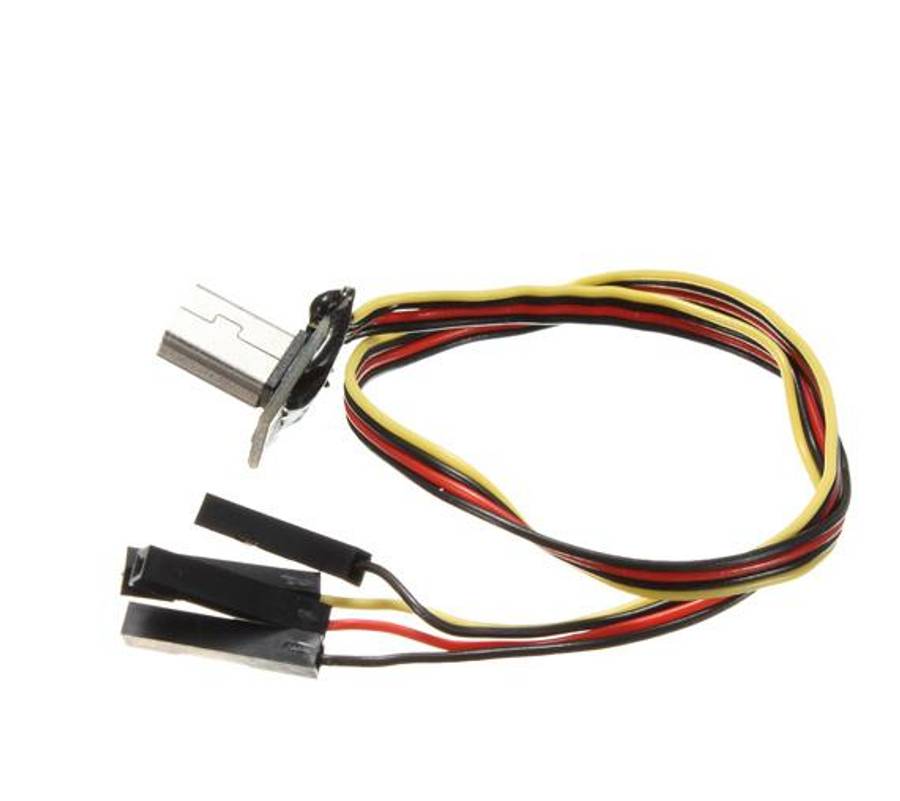

Mobius USB to AV Out FPV cable with Charging
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

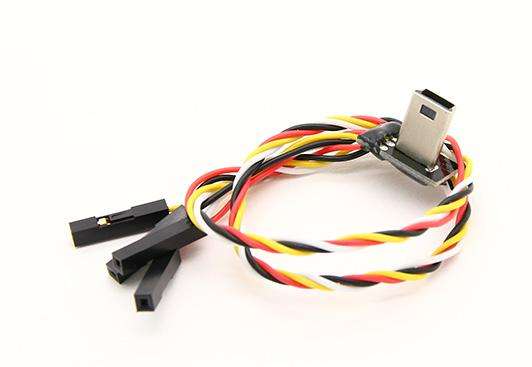

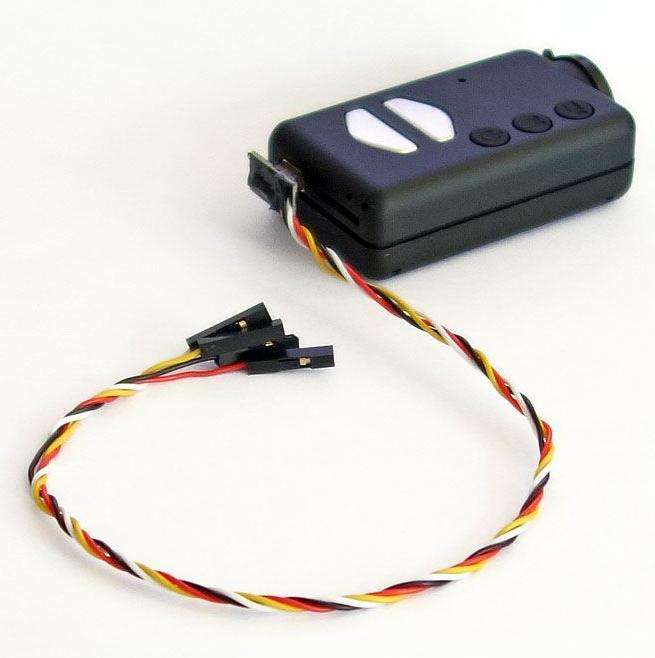

This handy cable will connect to the USB port of your Mobius camera, allowing it to be used as your primary video feed. The slim 90deg PCB design and Ultra flexible silicon wires still allow for gimbal and tight fitment use. The cable also provides a charging option for your Mobius camera system keeping your battery topped up and making sure you never miss any of the action! The 4 wire Adapter only needs 2 wires Video and ground to stream live video out to your Video transmitter. You still have the option of Audio and power/charge on the other two wires if needed. The single pin Header allows this cable to be plugged into just about any Video TX by swapping the order to matching the pin out of your TX.
Specs:
Connector: USB to Single pin (Suit most Video Transmitter such as Skyzone, Boscam & Fatshark)
Cable length: 230mm
Voltage: 5v
Pin Out
Black: GND
Red: 5V DC
White: Audio
Yellow: Video
Charging is optional, for Video out only simply connect GND & Video only (Black & Yellow wires)
