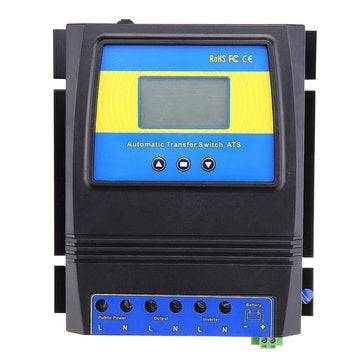

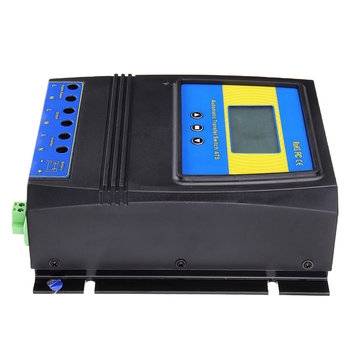

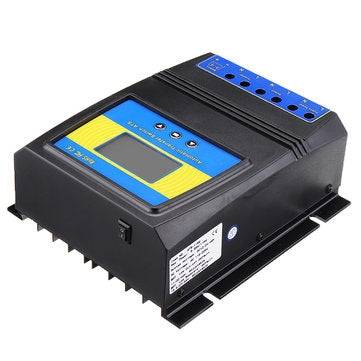

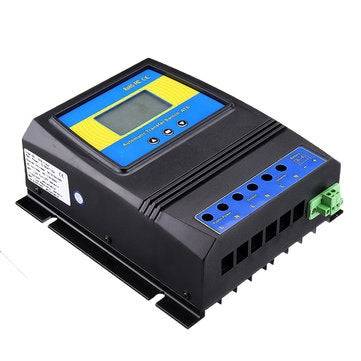

MoesHouse Automatic ATS Dual Power Transfer Switch Solar Charge Controller for Solar Wind System DC

Feature: - New item release: The controller allows for trouble-free operation of inverters and AC mains in the same circuit. The controller switches automatically between inverter and AC mains while protecting the inverter against external voltage. - Works like an UPS, But in opposite direction: The controller will switch to grid when batteried are low to cut off point, once the batteries are back to recovery point, it will switch back to battery power. - Great for solar and wind: Automatically switches over to grid power on those cloudy or windless days and your batteries get low, Take charge over your battery bank. - Auto distinguish for DC 12/24/48V, AC 110/220V - LCD display - Transfer Time: Less than 10ms - Adjustable battery cut off low voltage and recovery voltage.
- Wiring diagram:
- User manual:
Parameter: Rated power: 11kw/5.5kw Input voltage: Auto distinguish: AC 100-120V or AC 220-240V Output voltage: Auto distinguish: AC 100-120V or AC 220-240V Transfer time: Inverter transfer to public power less than 10ms, Public power transfer to inverter less than 16ms LCD display: Woking status of Public power, inverter and battery System voltage: Auto Distinguish: 12V or 24V or 48V BAT. Low Cut-down: Default 11V/22V/44V, adjustable BAT. Low Recovery: Default 13.5V/27V/54V, Adjustable Application: Off-grid solar or wind system Product size: 19*17*7.25cm(7.4in*6.7in*2.8in) N.W/PC: 1.26KG G.W/PC: 1.63KG

Package included:

1 xSolar Charge Controller
