Features:
LCD display.
PWM battery charging.
All necessary protections equipped.
Adjustable controlling parameter of the system.
Suitable for Home, Industrial, Commercial etc.
Solar controllers are built-in electronic fused that do not require replacements. Adjustable controlling parameter of the system.
The controller has a low failure rate and will last a long time and protected with moisture-tight coating, minimizing damage from humidity and from nesting insects.
Easy to set up and operate. Suitable for home, industrial, commercial, boat, car etc.Working Temperature: -35 to 60 Degree Battery
Specification:Voltage: 12V/24V auto
Charge Current: 30A
Discharge Current: 30A
Overloading & Short-circuit protection. Reverse discharging & reverse-polarity protection.
Working Temperature: -35°C to +60°C
Self consume: ≤10mA
Float Charge: 13V(default,adjustable)
Discharge stop:10.7V(default,adjustable)
Discharge reconnect:12.6V(default,adjustable)
Size:133 x 70 x 32mm

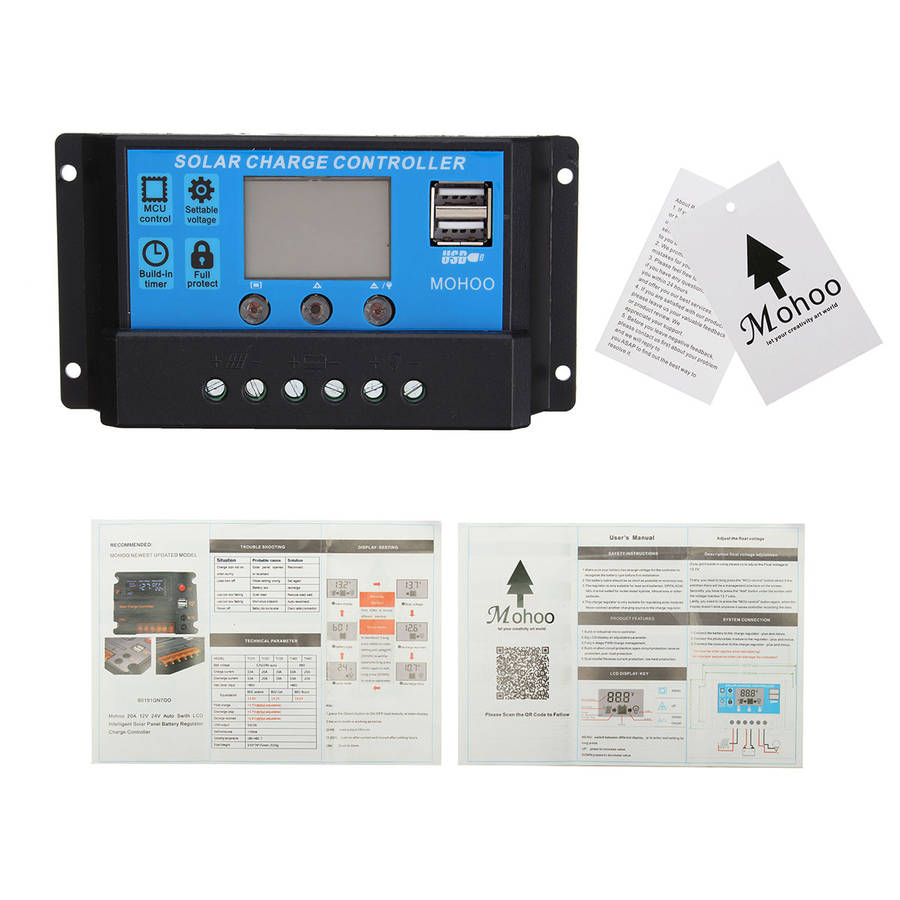

Package included:
1 x 30A Solar Charge ControllerDetails pictures:
