Brand New & Sealed with Manufacturer Warranty

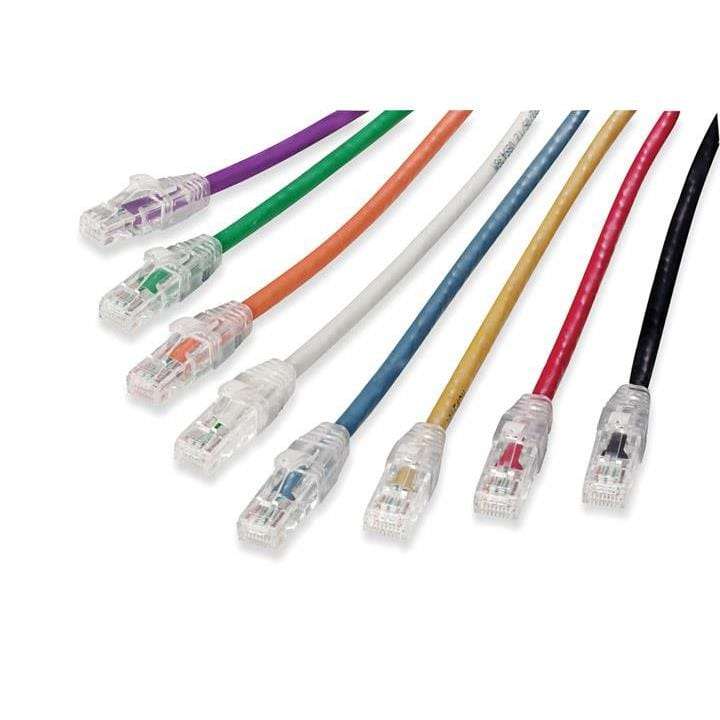

Molex 10m PowerCat 6 U/UTP Patch Cord Red PCD-02019-0C
Molex PowerCat 6 U/UTP Patch Cords are key components of PowerCat 6 U/UTP End-to-End Solution and are designed to support data networks for 10/100BASE-T and 1000BASE-T applications. The patch cable is made from high quality four pair 24 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6 patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.
Specifications
Commercial Standards: ANSI/TIA-568.2-D-2018, ISO/IEC 11801-1:2017, UL Listed, ETL Verified, AS/CA S008:2020, RoHS Compliant, IEC-61935-2
Fire Propagation Tests (LS0H Sheath): CSA FT1, IEC 60332-1, IEC 61034, IEC 60754
Cable Conductor Size: 24 AWG stranded copper wire
Insulation Diameter: 0.98 ± 0.05 mm
Max Voltage: 150 VAC (max)
Max Current: 1.5A - 25°C
Nominal Outer Diameter (O.D.): 5.9 mm
Sheath: LS0H
Bend Radius: 4X O.D.
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +60°C
Plug Minimum Operating Life: 750 insertion cycles
RJ45 Plug and Boot Material: Clear polycarbonate (PC), UL 94V-0
Contact Material: 0.35 mm thick copper alloy
Contact Plating: Selective gold
RJ45 Plug Dimensions Compliance: ISO/IEC 60603-7-4 and FCC 47 Part 68
