Molex (120085-0012) Sensor Connector, Female, 5 Positions, Solder Socket

Molex (120085-0012) Sensor Connector, Female, 5 Positions, Solder Socket

New 5 available
Only 5 left – grab it before it’s gone!
R1,539.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2080745
Bob Shop ID
645121541

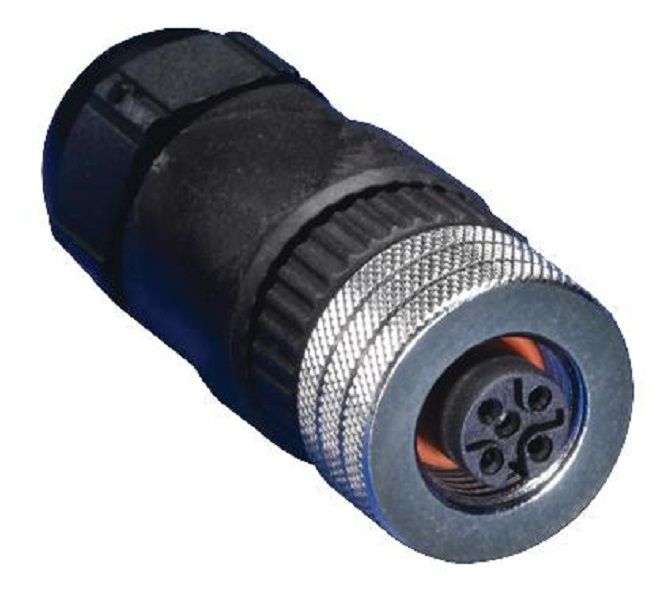

Sensor Connector, BRAD, Ultra-Lock 120085 Series, M12, Female, 5 Positions,Solder SocketProduct OverviewThe 120085-0012 is a 5-pole Ultra-LockĀ® (M12) female Field Attachable Connectorwith gold-plated over nickel brass straight contacts. The Ultra-LockĀ® connectorincorporates a mechanical locking design and unique radial-seal that deliverunsurpassed performance. The patented push-to-lock technology provides a simpleand secure operator-independent connection. This positive locking designprovides built-in reliability that eliminates connector related intermittentsignals in the harshest environments.Push to lock couplingPA connector bodyNickel-plated brass coupling nut18AWG Wire size4A Maximum current per contact30VAC/36VDC Maximum voltageIP69K ProtectionApplicationsSensing & InstrumentationProduct InformationProduct Range: Ultra-Lock 120085 SeriesSensor Connector Gender: FemaleNo. of Positions: 5 PositionsNo. of Contacts: 5ContactsSensor Contact Type: Solder SocketSensor Connector Mounting: Straight Cable MountIP / NEMA Rating: IP67, IP68, IP69KConnector Body Material: Nylon (Polyamide) BodyContact Material: BrassContact Plating: GoldVoltage Rating: 36V
Add to cart
