Molex (172064-0002) Pin Header, Power, 2 Rows, 2 Contacts

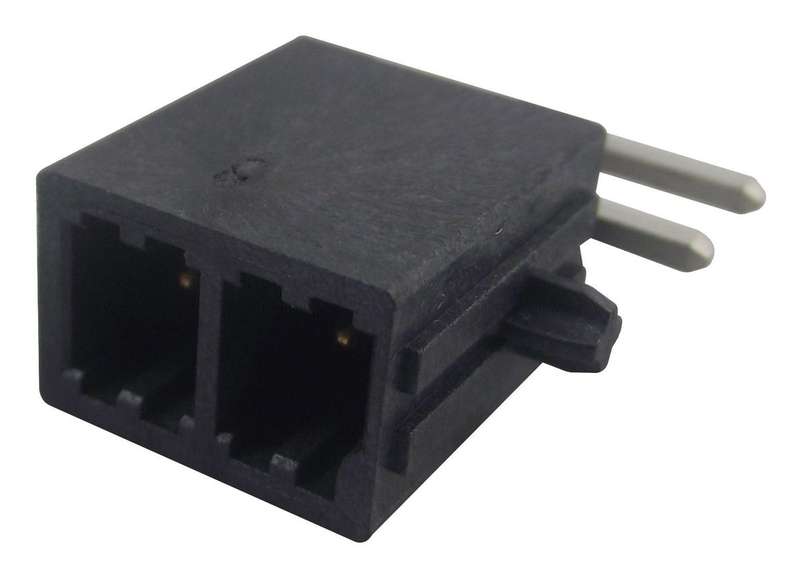

Pin Header, Power, 2 Rows, 2 Contacts, Through Hole Right Angle, Mega-Fit 172064Product OverviewThe 172064-0002 is a 2-circuit 2-row 5.70mm pitch Mega-Fit® right angle headerwith gold-plated copper contacts and through hole termination. This 172064series PCB header is made of high temperature thermoplastic, mates with 171692,170001 series Mega-Fit® receptacle housing, suitable for power and wire-to-boardapplications. Mega-Fit® power connector delivers cutting-edge current density at23.0A per circuit, terminals provides six independent contact points forlong-term reliability in virtually every industry and application. Designengineers are faced with the challenge of greater power requirements with lessPCB footprint space. Mega-Fit® power connector solve this issue, providing morepower per linear- and square-millimetre than other mid-range power connectors inthe industry while packaged in a feature-rich, reliable power system.Power-dense design with high-current terminals, tight pitch and row spacingTerminal interface, offers redundant, secondary current paths for long-termperformance/reliabilityFully isolated header pins and receptacle terminalsPositive locking housingSacrificial contacts allows system to be "hot plugged" at 48V/23A up to 30cyclesBlack colourGlow-wire compliantUL94V-0 flammability ratingCurrent rating per contact is 23AVoltage rating is 600V-40 to 120°C Temperature rangeApplicationsCommercial Vehicle, Communications & Networking, Consumer Electronics,Industrial, Automation & Process ControlProduct InformationConnector Systems: PowerNo. of Contacts: 2ContactsContact Termination Type: Through Hole Right AngleNo. of Rows: 2RowsProduct Range: Mega-Fit 172064Contact Material: CopperContact Plating: Gold Plated Contacts
