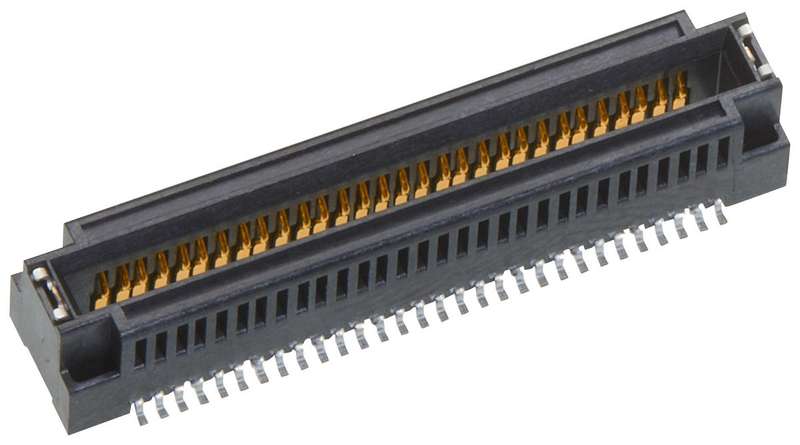

Molex (173300-0114) Card Edge Connector, Dual Side, 1.57 mm

Card Edge Connector, Dual Side, 1.57 mm, 82 Contacts, Surface Mount, Straight,SolderProduct OverviewMolex's SpeedEdge Edge-Card connector system is rugged enough to mate safelywith large PCBs in high-cycle applications while providing a high-density,low-profile solution with data rates to over 40 Gbps per differential pair. Theyare mechanically robust with thicker walls and higher stack height when comparedto other mezzanine systems and securely hold thick PCBs; delivers durability andhigh-mating cycles. The Split-pad PCB design allows for electrical tuningperformance to reach data rates to over 40 Gbps per differential pair.Voltage (max) is 250VACCurrent (max) is 1.0A per pinContact resistance is 20mohmDielectric withstanding voltage is 300VACInsulation resistance is 10MohmApplicationsCommunications & Networking, Consumer Electronics, Aerospace, Defence, Military,MedicalProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 82ContactsCard Thickness: 1.57mmNo. of Contacts: 82 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Surface MountPitch Spacing: 0.8mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: 30µ" Gold Plated ContactsRow Pitch: -Connector Body Material: LCP (Liquid Crystal Polymer) BodyContact Plating: Gold Plated ContactsProduct Range: SpeedEdge 173300
