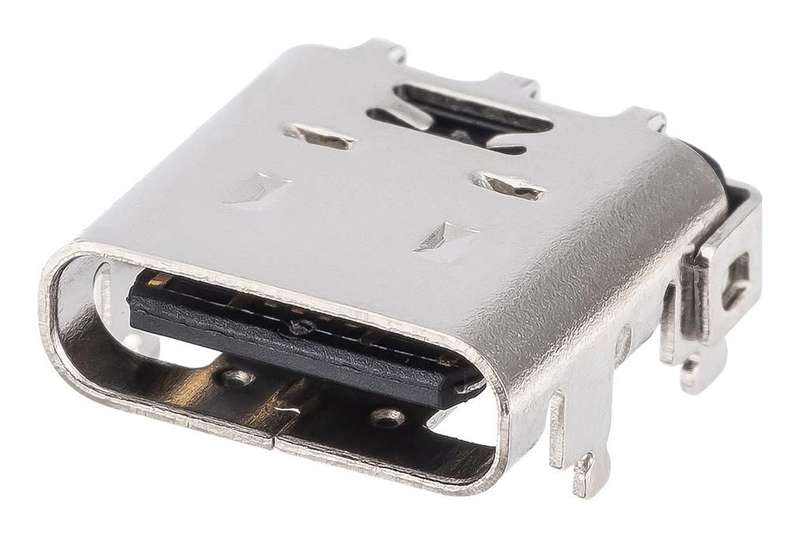

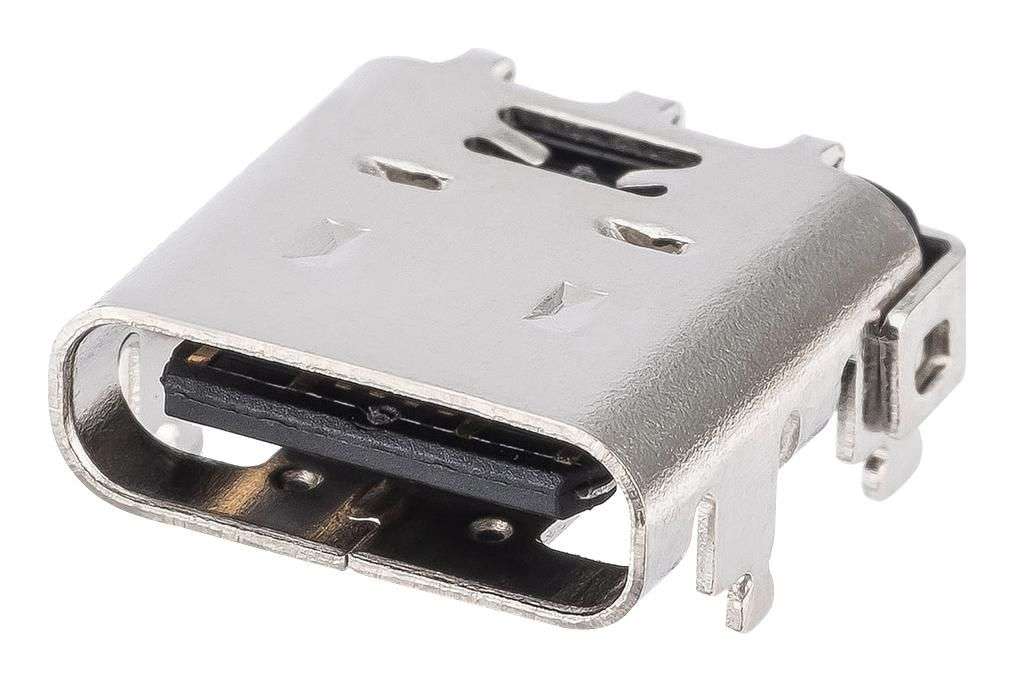

Molex (213716-0001) USB Connector, USB Type C, USB 2.0, Receptacle

USB Connector, USB Type C, USB 2.0, Receptacle, 16 Ways, Through Hole Mount,Right AngleProduct OverviewCompact USB Type-C connectors and cables expanded family supports USB4 andthunderbolt 4 up to 40Gbps speeds and offers robust, reliable connectivity inIoT, wearable devices and other high-speed data I/O applications. Typicalapplications include consumer, aviation, medical industrial, commercial,automotive and smart home system.213716 series type C universal serial bus (USB) shielded I/O receptacleRight-angle, top mountDual row, surface mount, gold (Au) flash over palladium nickel platingStandard designMates with USB type C plug/cableBlack colour high temperature thermoplastic resin, material metal is copperalloyDurability (mating cycles max) is 100000.50mm pitch - mating interface and 0.50mm pitch - termination interfaceOperating temperature range from -30° to +85°CCurrent (maximum per contact) is 5A, voltage (maximum) is 30V AC/DCProduct InformationUSB Connector Type: USB Type CUSB Standard: USB 2.0Gender: ReceptacleNo. of Positions: 16WaysConnector Mounting: Through Hole MountOrientation: Right AngleContact Material: Copper AlloyContact Plating: Gold Plated ContactsProduct Range: 213716
