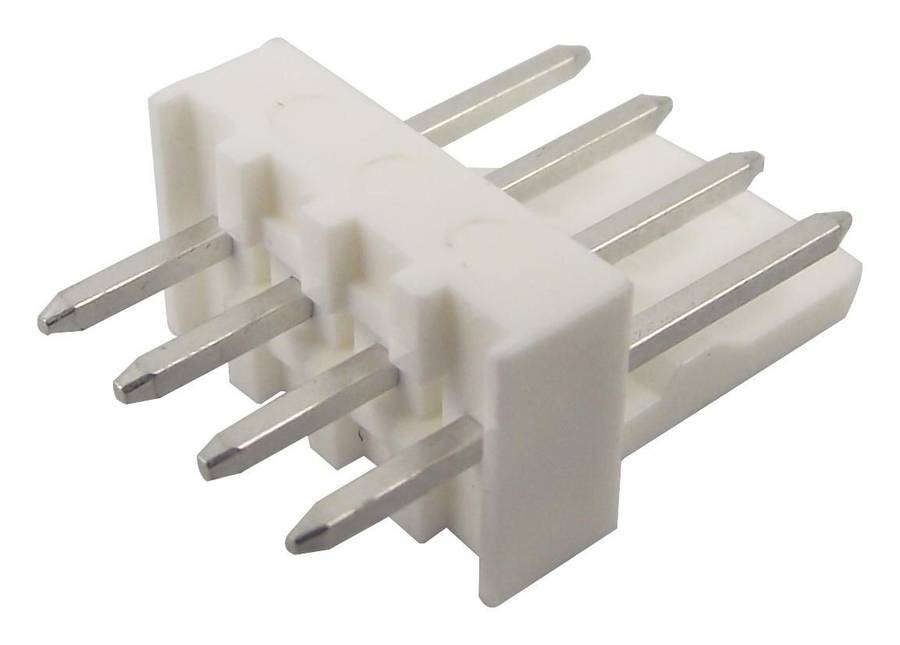

Molex (22-27-2041) Pin Header, Square Pin, Signal, Wire-to-Board, 2.54 mm

Pin Header, Square Pin, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 4 Contacts,Through Hole StraightProduct OverviewThe 22-27-2041 from Molex is a 6410 series KK 254, single row, vertical wire toboard header with 4 position. It mates with 2695, 6471 KK crimp terminalhousing.Available with friction lockNatural (white) colour resinFlammability rating meets UL94 V-0Brass contacts with tin platingNylon resin materialMating pitch interface pitch of 2.54mm and termination pitch interface of 2.54mmUL E29179 and CSA LR19980 approvedMaximum current per contact of 4A and maximum voltage of 250VThrough hole termination interfaceOperating temperature range from -40°C to 80°CApplicationsAutomotive, Communications & Networking, Consumer Electronics, MedicalProduct InformationConnector Systems: Signal, Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 1RowsNo. of Contacts: 4ContactsContact Termination Type: Through Hole StraightProduct Range: KK 254 6410Connector Shroud: Partially ShroudedContact Material: BrassContact Plating: Tin Plated Contacts
