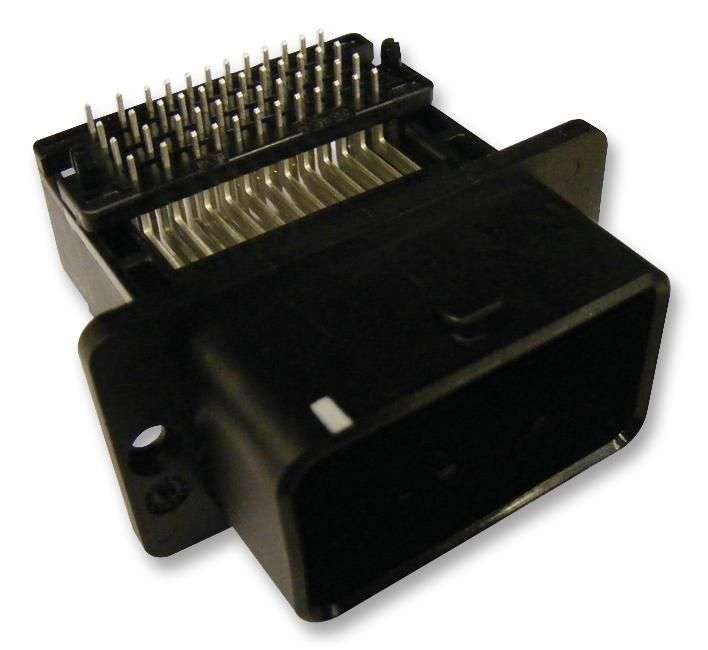

Molex (36638-0002) Automotive Connector, 48 Contacts, Solder Pin

Automotive Connector, Right Angle, CMC 36638 Series, Right Angle Plug, 48Contacts, Solder PinProduct OverviewSealed-connection system using matte-seal technology for CP 0.635 and 1.50mmterminalsHybrid-connection system using three different terminal sizes; CP 0.635/CP1.50/CP 2.80mm terminalsHigh-density system due to compact-connectorSystem offers several colour codings and mechanical polarizationFor IP6K7 & IP6K9 sealing, a blind plug is available to close the0.60/1.50/2.80mm terminal cavitiesWide range of standard headers and standardized cut-out header shapes32-circuit wire-to wire male header is designed for either bracket or clipmountingBlind plugs available to close unused connector cavitiesApplicationsAutomotive, Commercial VehicleProduct InformationProduct Range: CMC 36638 SeriesAutomotive Connector Shell Style: Right Angle PlugNo. of Contacts: 48ContactsAutomotive Contact Type: Solder PinConnector Body Material: PBT (Polybutylene Terephthalate), Glass Filled BodyContact Material: BrassContact Plating: TinVoltage Rating: 14VDCCurrent Rating: 6A
