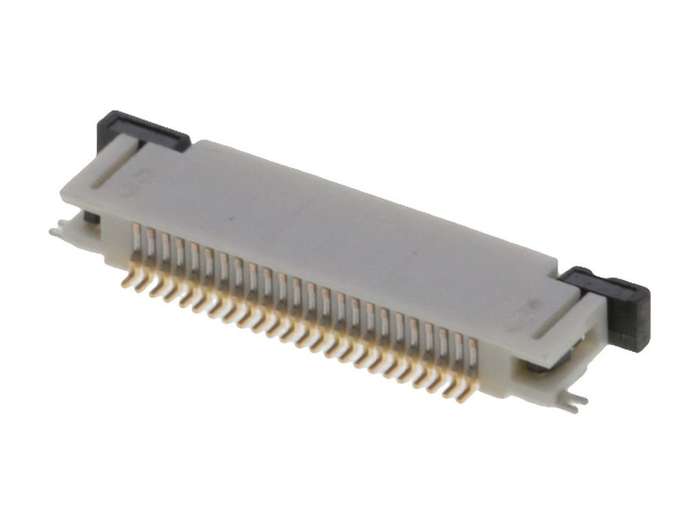

Molex (52435-2471) FFC / FPC Board Connector, 0.5 mm, 24 Contacts

FFC / FPC Board Connector, 0.5 mm, 24 Contacts, Receptacle, Easy-On 52435,Surface Mount, TopProduct OverviewThe 52435-2471 is a 24-circuit 1-row Easy-On type FFC/FPC right angleconnector, top contact style receptacle, gold-plated phosphor bronze contactsand surface mount termination. This 52435 series connector is made of nylon,mates with Molex Premo-Flex FFC. The FFC/FPC connector is available withactuator, which are pre-assembled covers that secure the connection between theFFC/FPC and the connector terminals.Narrower width and shorter length dimensions provides additional space savingsMovable terminals - Ensures more secure contact retentionDual-contact designHousing designs highlight FPC tabs assures proper cable seatingActuators reinforcements for large circuit sizesUL94V-0 flammability ratingCurrent rating per contact is 0.5AVoltage rating is 50V AC/DCOperating temperature range from -40 to 85°CApplicationsAutomotive, Consumer Electronics, Data , Computing, Industrial, Medical,Portable DevicesProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 24ContactsGender: Receptacle (View Associated Connectors)Product Range: Easy-On 52435Contact Termination Type: Surface MountContact Position: TopNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
