Molex (55909-0574) Mezzanine Connector, Header, 0.4 mm, 2 Rows, 50 Contacts

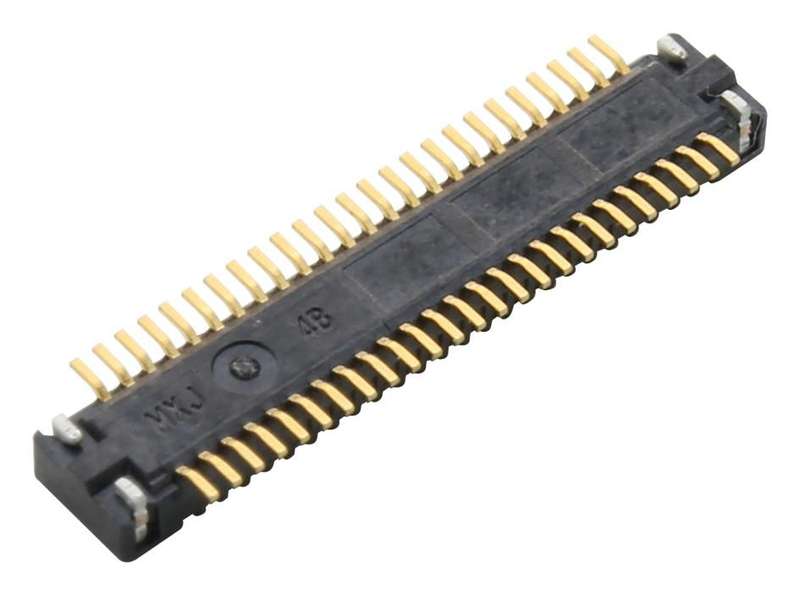

Mezzanine Connector, Header, 0.4 mm, 2 Rows, 50 Contacts, Surface Mount, BrassProduct OverviewThe 55909-0574 from Molex is a 0.4mm pitch dual row board-to-board SlimStackplug. This plug is made of brass material with gold material plating and goldtermination plating. It mates with SlimStack board-to-board receptacle 51338 and500913.Vertical orientation50 circuits (loaded)Maximum durability of 30 mating cyclesLock to mating partSurface mount termination interface styleOperating temperature range from -25°C to +85°CMaximum 0.3A current per contact, maximum 50V AC (RMS)/DC voltageBlack colour resinWith PCB retention and no breakawayNon stackableApplicationsAutomotive, Consumer Electronics, Data , Computing, Industrial, Medical,Portable DevicesProduct InformationMezzanine Connector Type: HeaderNo. of Contacts: 50ContactsPitch Spacing: 0.4mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: BrassContact Plating: Gold Plated ContactsProduct Range: SlimStack 55909
