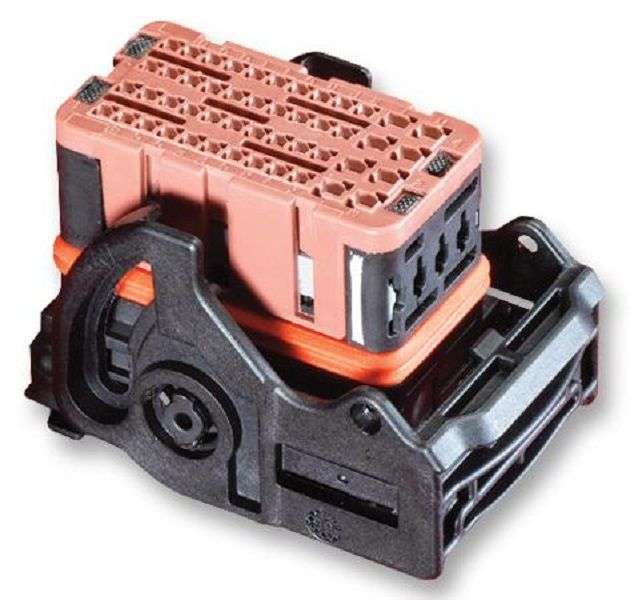

Molex (64320-3319) Automotive Connector Housing, Sealed Hybrid Modular

Automotive Connector Housing, Sealed Hybrid Modular, Right Wire Output, Brown,CMC 64320Product OverviewSealed-connection system using matte-seal technology for CP 0.635 and 1.50mmterminalsHybrid-connection system using three different terminal sizes; CP 0.635/CP1.50/CP 2.80mm terminalsHigh-density system due to compact-connectorSystem offers several colour codings and mechanical polarizationFor IP6K7 & IP6K9 sealing, a blind plug is available to close 0.60/1.50/2.80mmterminal cavitiesWide range of standard headers and standardized cut-out header shapes32-circuit wire-to wire male header is designed for either bracket or clipmountingBlind plugs available to close unused connector cavitiesApplicationsAutomotive, Commercial VehicleProduct InformationProduct Range: CMC 64320Gender: Receptacle (View Associated Connectors)No. of Positions: 48WaysFor Use With: Molex CMC CP 64322, 64323 Series Socket ContactsConnector Body Material: PBT (Polybutylene Terephthalate), Glass Filled BodyIP Rating: IP6K9K
