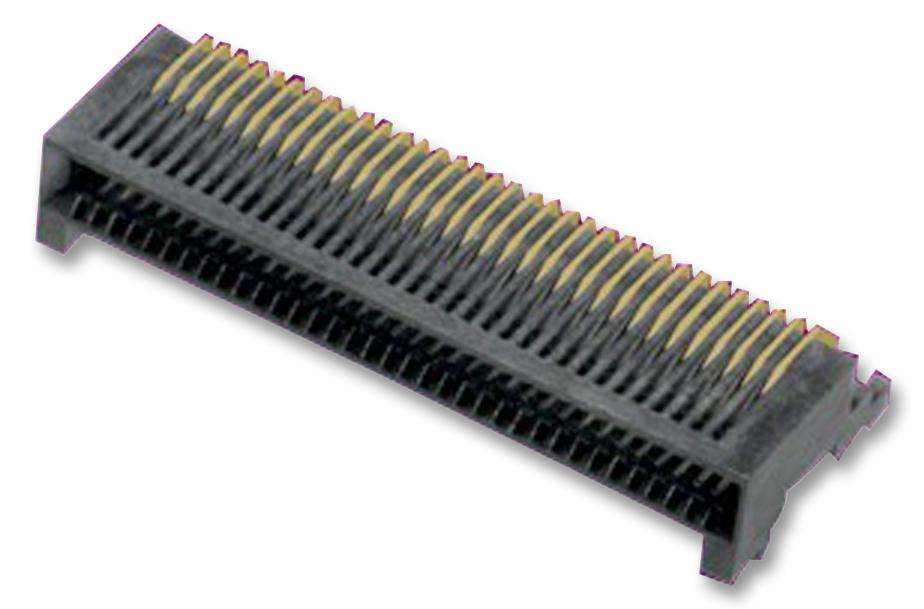

Molex (75586-0010) I/O Connector, 38 Contacts, Receptacle, Mini SAS

I/O Connector, 38 Contacts, Receptacle, Mini SAS, Surface Mount, iPass 75586,PCB MountProduct OverviewThe 75586-0010 is a 0.8mm pitch right-angle iPass Mini Multi-Lane PCI ExpressI/O receptacle for wire-to-board application. It features 38-circuit, 1-port,2-row for external application and supports QSFP14/FDR. It is made of highperformance alloy and high temperature thermoplastic resin with gold plating onmating area and tin plating on termination. It mates with 74547 iPass cableassembly.Maximum current per contact is 0.5AOperating temperature range from -40°C to 80°CMaximum durability of 50 mating cyclesSurface mount style termination interfaceApplicationsCommunications & NetworkingProduct InformationNo. of Contacts: 38ContactsGender: Receptacle (View Associated Connectors)Connector Type: Mini SASContact Termination Type: Surface MountProduct Range: iPass 75586Connector Mounting: PCB MountContact Plating: Gold Plated ContactsContact Material: Copper Alloy
