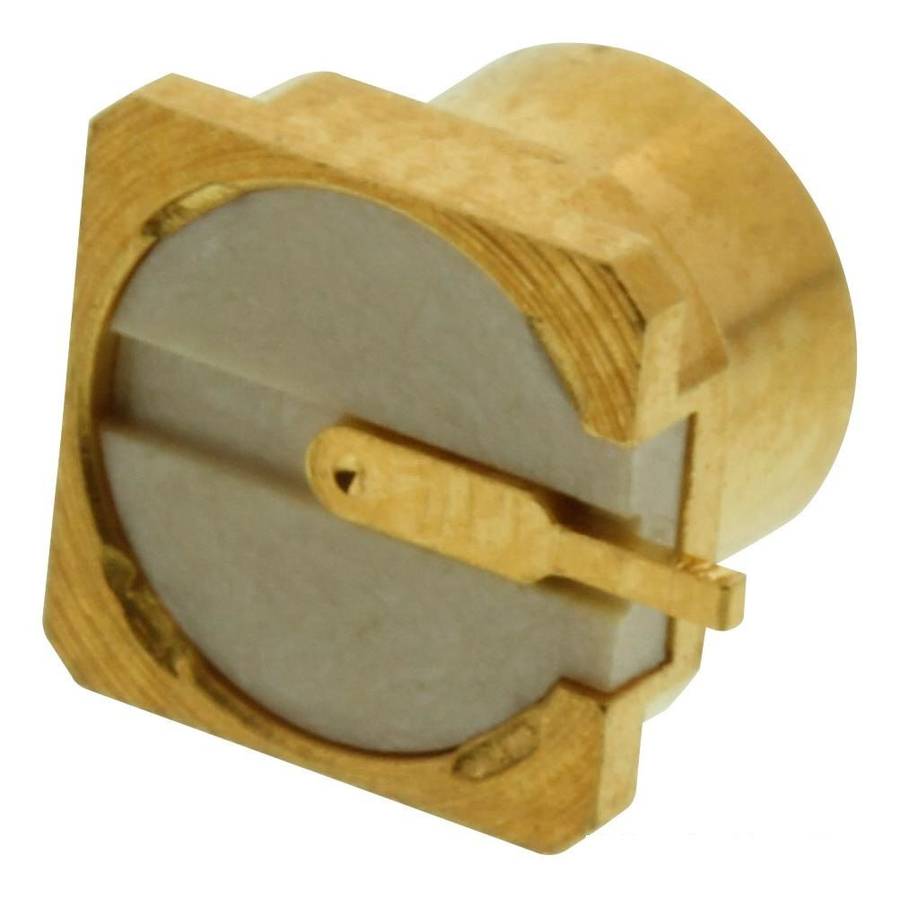

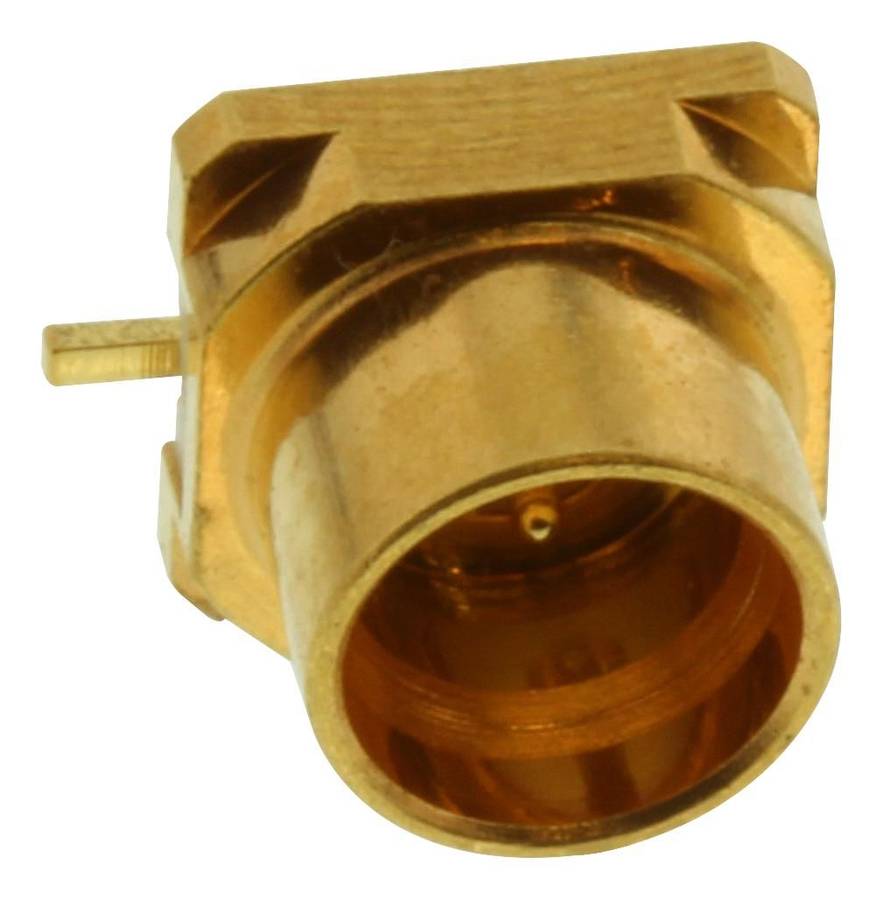

Molex (85305-0232) RF / Coaxial Connector, SMP Coaxial, Straight Plug

RF / Coaxial Connector, SMP Coaxial, Straight Plug, Surface Mount Vertical, 50ohm, BrassProduct OverviewThe 85305-0232 is a Bulk SMP Plug with brass body, gold-plated brass contactsand PCB mounting. This 85305 series plug has peek or LCP insulation and surfacemount vertical termination. The Molex's SMP subminiature connector offersexcellent performance from DC to 40GHz. PCB mount, cable mount and in-seriesadapters provide an interconnect solution for board-to-board and blind mateapplications while maintaining package density. Interface styles include smooth,limited detent and full detent to cover a wide range of applications.Delivers high density and excellent frequency performanceLimited detentUL94V-0 flammability ratingProduct InformationConnector Type: SMP CoaxialConnector Body Style: Straight PlugCoaxial Termination: Surface Mount VerticalImpedance: 50ohmCoaxial Cable Types: -Contact Material: BrassContact Plating: Gold Plated ContactsFrequency Max: 40GHzConnector Mounting: PCB MountProduct Range: 85305
