Molex (90120-0130) Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 10 Contacts,

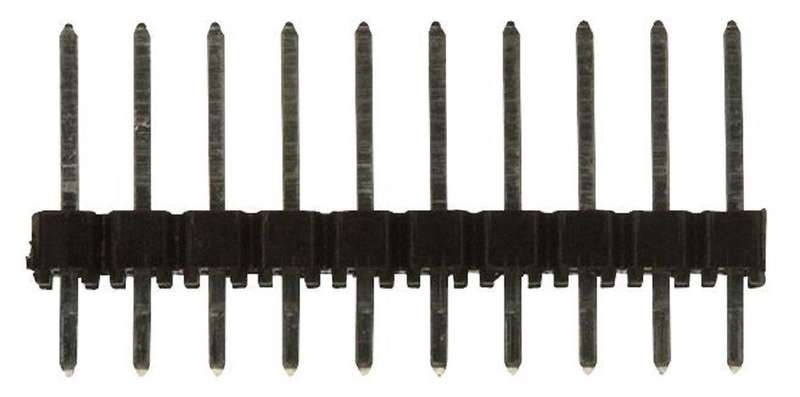

Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 10 Contacts, Through Hole Straight,C-Grid III 90120Product OverviewThe 90120-0130 is a 10-circuit 1-row 2.54mm pitch C-Grid III vertical headerwith tin-plated brass contacts and through hole termination. This 90120 seriesPCB header is made of polyester, mates with 90147 C-Grid® PC board connector,90123 C-Grid III modular crimp housing, suitable for signal and wire-to-boardapplications. The 3rd generation C-Grid III 2.54mm pitch post and receptacleinterconnection system offers complete design flexibility and modularcomponents. C-Grid III has been developed to meet the latest industryrequirements. Header will accept both discrete wire and ribbon cable connectors.C-Grid III box contact design employs the same mating concept with alltermination techniques. A uniform locking system on all contacts allows fullinterchangeability inside different housing styles. C-Grid III is fullycompatible with the industry standard DIN41651 as well as the French normHE-13/14.Highly versatileUnique designFully intermateable/interchangeable with Molex's QF-50 product rangeBlack colourUL94V-0 flammability ratingCurrent rating per contact is 3A350VAC/DC voltage ratingOperating temperature range from -55°C to +125°CApplicationsCommercial Vehicle, Consumer ElectronicsProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 1RowsNo. of Contacts: 10ContactsContact Termination Type: Through Hole StraightProduct Range: C-Grid III 90120Connector Shroud: UnshroudedContact Material: BrassContact Plating: Tin Plated Contacts
