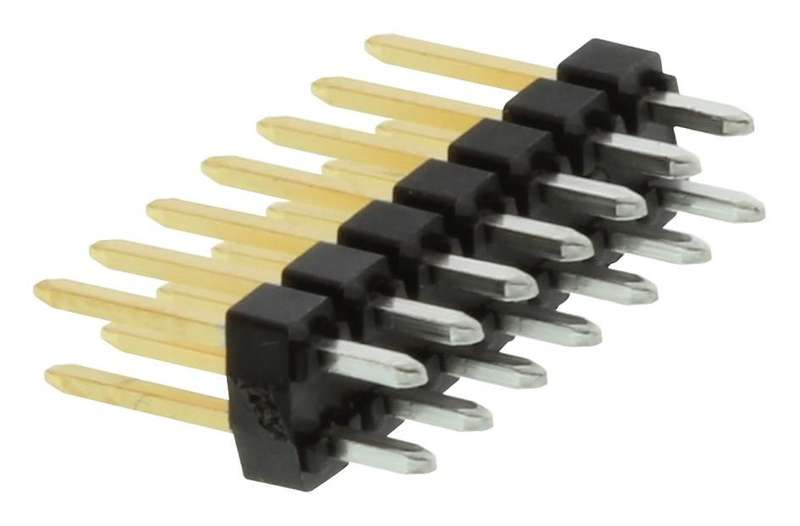

Molex (90131-0767) Pin Header, Vertical, Wire-to-Board, 2.54 mm, 2 Rows

Pin Header, Vertical, Wire-to-Board, 2.54 mm, 2 Rows, 14 Contacts, Through HoleStraightProduct OverviewThe 90131-0767 is a 14-circuit 2-row 2.54mm pitch C-Grid III vertical headerwith gold-plated brass contacts and through hole termination. This 90131 seriesPCB header is made of polyester, suitable for signal and wire-to-boardapplications. The C-Grid III has been developed to meet the latest industryrequirements. Headers will accept both discrete wire and ribbon cableconnectors. C-Grid III box contact design employs the same mating concept withall termination techniques. A uniform locking system on all contacts allows fullinterchangeability inside different housing styles. C-Grid III is fullycompatible with the industry standard DIN41651 as well as the French normHE-13/14. Moreover, it is fully intermateable/interchangeable with Molex's QF-50product range.Black colourCurrent rating per contact is 3AVoltage rating is 350VTemperature range from -55 to 125°CApplicationsCommercial Vehicle, Consumer ElectronicsProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 2RowsNo. of Contacts: 14ContactsContact Termination Type: Through Hole StraightProduct Range: C-Grid III 90131Contact Material: BrassContact Plating: Gold Plated Contacts
