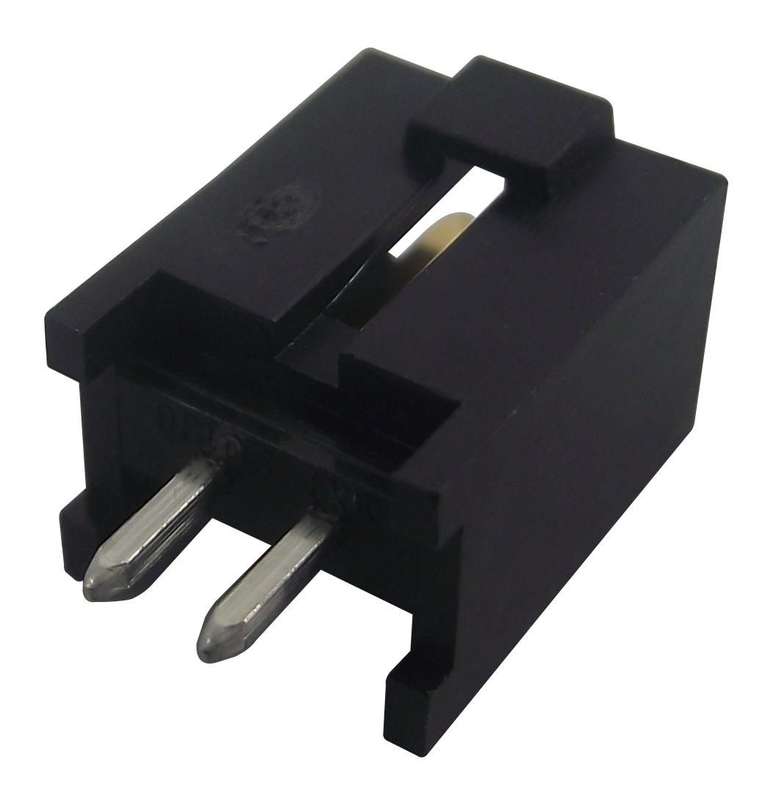

Molex (90136-1202) Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts

Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Straight,C-Grid III 90136Product OverviewThe 90136-1202 is a 2-circuit 1-row C-Grid III vertical header with gold-platedbrass contacts and through hole termination. This 90136 series PCB header ismade of polyester, mates with 90123 C-Grid III modular crimp housing, 90156C-Grid III crimp housing, suitable for signal and wire-to-board applications.The C-Grid III has been developed to meet the latest industry requirements.Headers will accept both discrete wire and ribbon cable connectors. C-Grid IIIbox contact design employs the same mating concept with all terminationtechniques. A uniform locking system on all contacts allows fullinterchangeability inside different housing styles. C-Grid III is fullycompatible with the industry standard DIN41651 as well as the French normHE-13/14. Moreover, it is fully intermateable/interchangeable with Molex's QF-50product range.Black colourUL94V-0 flammability ratingCurrent rating per contact is 3AVoltage rating is 350VAC/DCTemperature range from -55 to 125°CApplicationsCommercial Vehicle, Consumer ElectronicsProduct InformationConnector Systems: Wire-to-BoardPitch Spacing: 2.54mmNo. of Rows: 1RowsNo. of Contacts: 2ContactsContact Termination Type: Through Hole StraightProduct Range: C-Grid III 90136Connector Shroud: ShroudedContact Material: BrassContact Plating: Gold Plated Contacts
