Molex (90327-0316) IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row

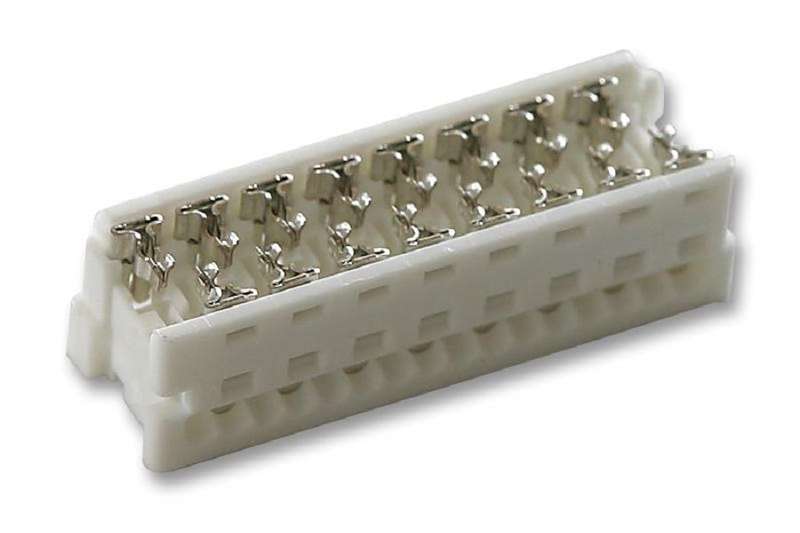

IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 16 Contacts, Cable MountProduct OverviewThe 90327-0316 is a 16-circuit 2-row Picoflex® PF-50 Receptacle, for 28 to 26AWGwire, with tin-plated phosphor bronze contacts and IDT termination. This 90327series low profile receptacle is made of polyester, mates with low profilevertical 90325, low profile right angle 90800, 90715, 90814, 90779 vertical,91714 1.27mm pitch Picoflex® PF-50 header. The Picoflex® connector provides highpower and signal in a space-saving, robust and reliable package for a diverserange of wire-to-board applications. Picoflex connector provides high-densitysolutions when flat-flexible connector is not appropriate. A strong one-pieceupper housing provides excellent cable retention and is ideal for small circuitsize applications. The high-reliability contact features a 4-point interfacewith cable and two points of contact between the header and receptacle.Highly reliable, power and signalPicoflex connector mates with 1.27mm cable - A worldwide industry standardExcellent polarization to both PCB and between female connector and headerConfirms high-vibration and shock requirementsWhite colourUL94V-0 Flammability rating1.2A Current rating per contact250V Voltage rating-40 to 105°C Temperature rangeApplicationsAlternative Energy, Automotive, HVAC, Consumer Electronics, Security,Communications & Networking, Industrial, Automation & Process Control, PowerManagement, MedicalProduct InformationIDC Connector Type: IDC ReceptacleContact Gender: FemalePitch Spacing: 1.27mmNo. of Rows: 2 RowNo. of Contacts: 16ContactsConnector Mounting: Cable MountContact Material: Phosphor BronzeContact Plating: Tin Plated ContactsProduct Range: Picoflex 90327 Series
