Molex PowerCat 6 DataGate Jack/ 568A/B UTP - White KSJ-00018-02

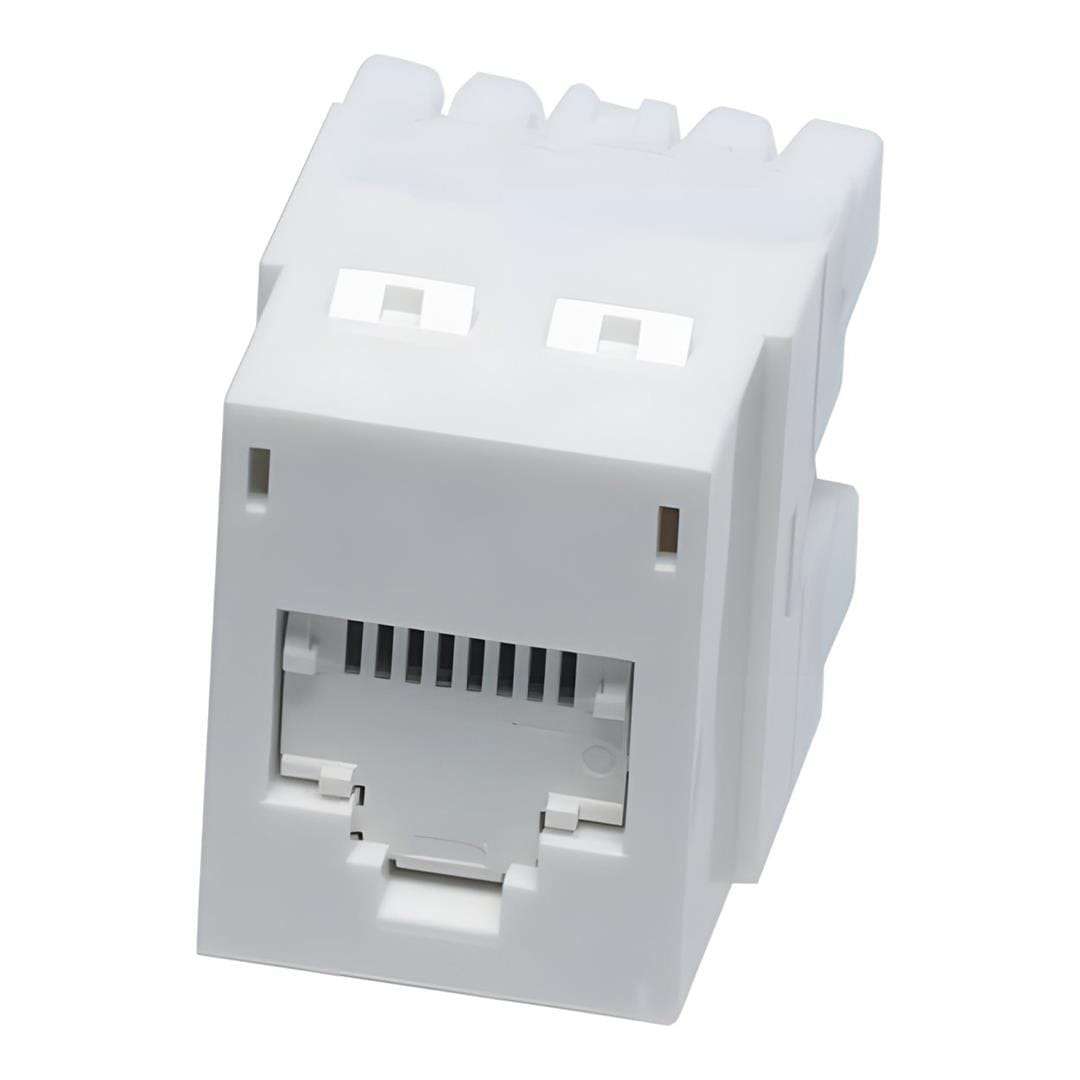

The PowerCat 6 DataGate Jack is designed to maintain clean secure connections. The RJ-45 jack features a patented 'spring-loaded shutter' which protects it from dust and contaminants as well as provides tactile feedback — the spring-loaded shutter pops out an improperly seated patch cord—all with single-handed plug-in and removal. DataGate jacks utilize patented IDC V-shaped contacts that flex not fatigue when terminated. The DataGate jack is engineered for use across a broad range of Molex products.

Termination Process: Videos

The videos below, created by the Molex Technical Services Team, show the process for terminating cable into a Molex PowerCat 6 DataGate Jack, p/n KSJ-00018, using a 110 Punchdown tool and a Multipair tool.

Features:

• Patented Spring-Loaded Shutter:
• Prevents incomplete mating
• Protects from dust and contaminants
• Patented IDC V-shaped contacts that flex not fatigue when terminated
• Features pointed IDC towers to speed termination and enhance cable retention
• Dual color-coding allows for 568 A/B wiring configuration
• Can be terminated using industry standard punch-down tools
• RJ-11 compatible
• Molded category identification on jack face as well as optional port identification icons
• USOC Wiring Sequences Available
• Integrated bend-limiting and strain-relief unit for cable entry
• RoHS Compliant

Technical Specifications:

Mechanical

Jack Connector

Plastic Housing
Thermoplastic UL94V-0 rated or equivalent

Operating Life
Minimum 750 insertion cycles

Contact Material
Copper Alloy

Contact Plating
50" Gold / 100" Nickel

Contact Force
100 g minimum

Plug Retention Force
11 lbf minimum

IDC Connector

Plastic Housing
Thermoplastic UL94V-0 rated or equivalent

Operating Life
Minimum 200 reterminations

Contact Material
Copper Alloy

IDC Contact Plating
Tin matte finish

Wire Accommodation
22—24 AWG solid

Electrical

Interface Resistance
20 m

Initial Contact Resistance
2.5 m

Insulation Resistance

100 Megohms

Current
1.5 A

Contact Resistance
0.2

DC/AC Endurance
1000 V DC/AC peak between contactors

Physical

Dimensions
23.9 mm (H) × 17.8 mm (W) × 32.3 mm (D)
(0.94" H × 0.70" W × 1.27" D)

Shipping Weight
14 g (0.49 oz)

Operating Temperature
-10°C to +70°C

Corrosion
ASTM B117: 2019

Commercial Standards

• TIA-568.2-D: Cat.6
• EN 50173-1:2011 Class E
• ISO/IEC 11801:2010 (Ed 2.2) Class E
• FCC Subpart F68.5
• IEC 60603-7
• UL Listed
• AS/CA S008:2020 25 kg
• RoHS Directive 2011/65/EU and (EU) 2015/863

PoE

Our PowerCat 6 system is suitable for PoE applications as defined below:

• IEEE 802.3bt from Type 1 to Type 4
• CISCO UPoE+
