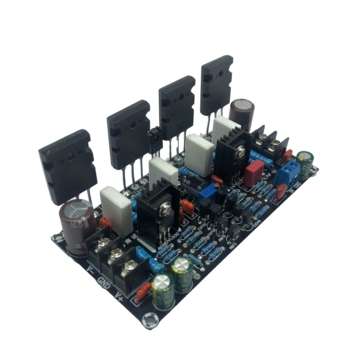

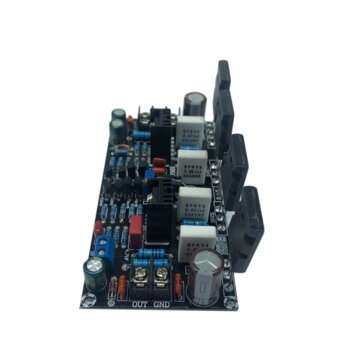

Mono 200W Power Amplifier Board 1943+5200 Tube Rear Stage Power Amplifier Board Mono 200W Power Amplifier Board 1943+5200 Tube Rear Stage Power Amplifier Board
Mono 200W Power Amplifier Board 1943+5200 Tube Rear Stage Power Amplifier Board Mono 200W Power Amplifier Board 1943+5200 Tube Rear Stage Power Amplifier Board

Mono 200W Power Amplifier Board 1943+5200 Tube Rear Stage Power Amplifier Board

20 available / new
R672.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643384811

Feature:


The power supply range is DC + -15V DC to DC + -65V DC.

The recommended DC voltage is +-40V, which is ideal for household use.

The circuit design uses A970/C2240 high withstand voltage audio pair tube dual differential circuit, and A1145/C2705 for voltage amplification, promotes the use of medium power pair tube A1837/C4793, and the output stage uses A1943/C5200 high power T0shiba pair tube. The power supply range is wide, DC positive or negative 20V-50V can be, as long as enough power is supplied to easily reach 200W. The sound quality is good, the driving force is very strong, and there is no pressure to push the 15-inch speaker!

PCB size: 120*60*1.6mm length, width and thickness


Package includes:


1 xMono 200W Power Amplifier Board
