Description

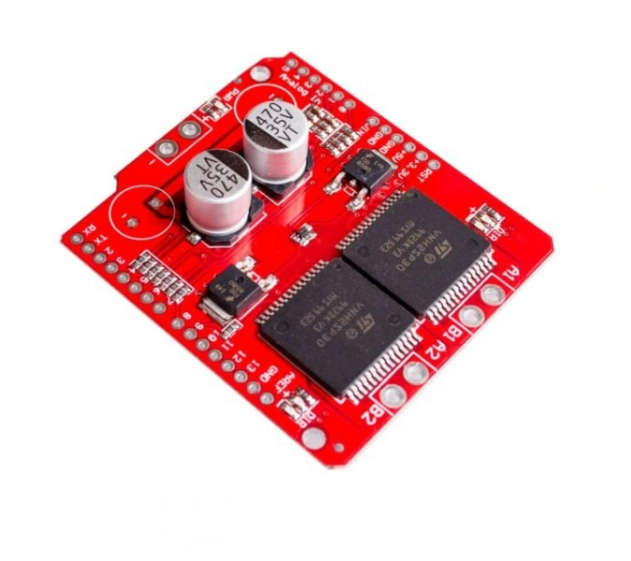

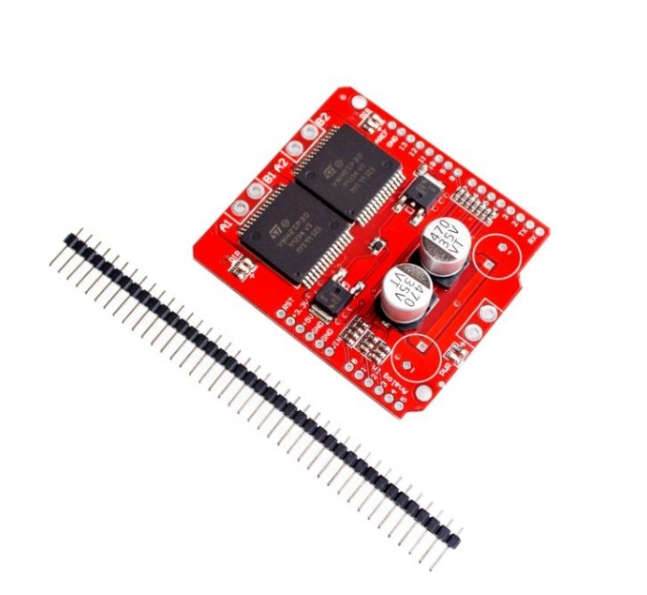

When you need some serious grunt and the small stepper motor controllers just won't deliver then this one is for you. It's plug and play connection to your Arduino to make life supper simple and it's dual channel, what more can you ask for?

ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!

Specifications

Controller: VNH2SP30
Max Voltage: 16V
Max Current: 30 A
Continuous Current: 14 A
Current sensing available to Arduino analog pin
MOSFET on-resistance: 19 m? (per leg)
Maximum PWM frequency: 20 kHz
Other Features: Thermal Shutdown, Undervoltage and Overvoltage shutdown
