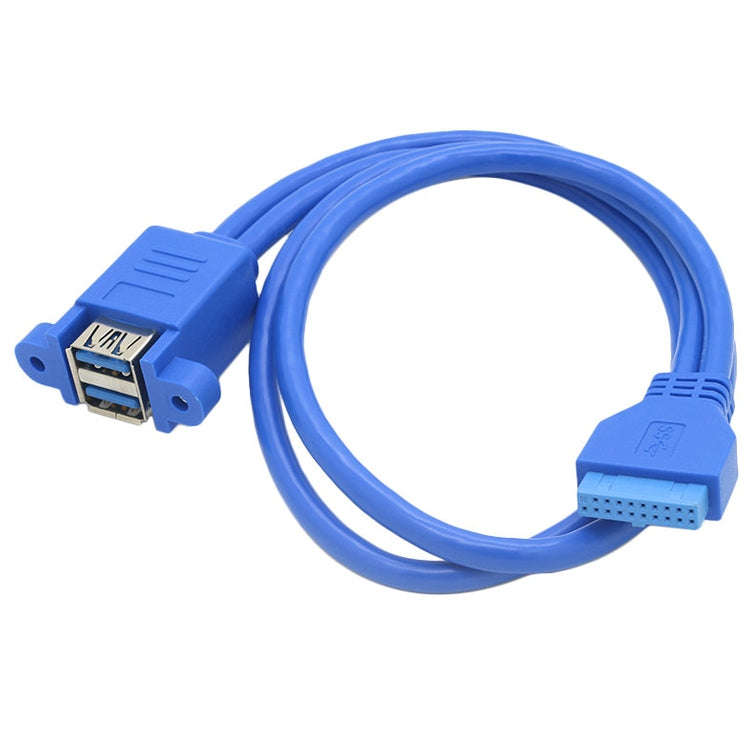

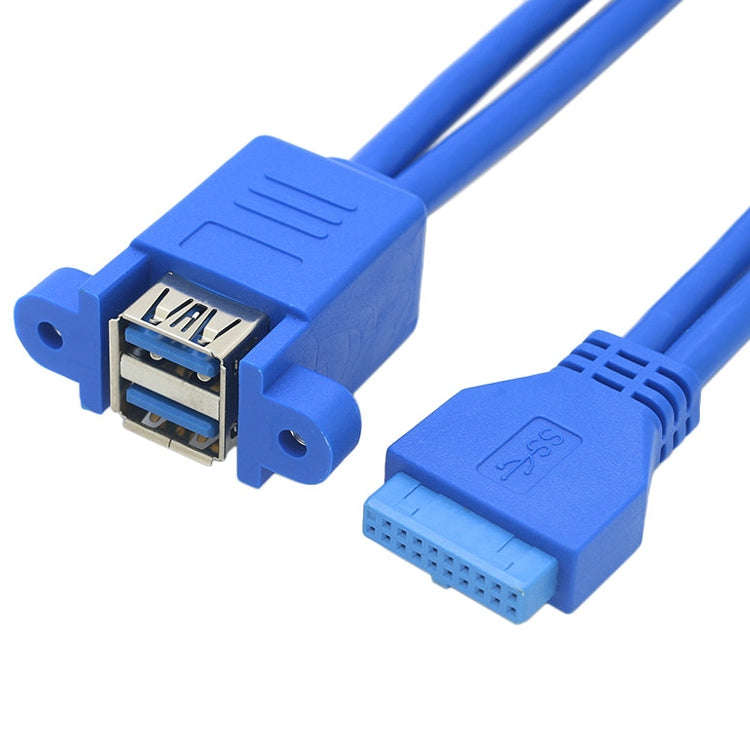

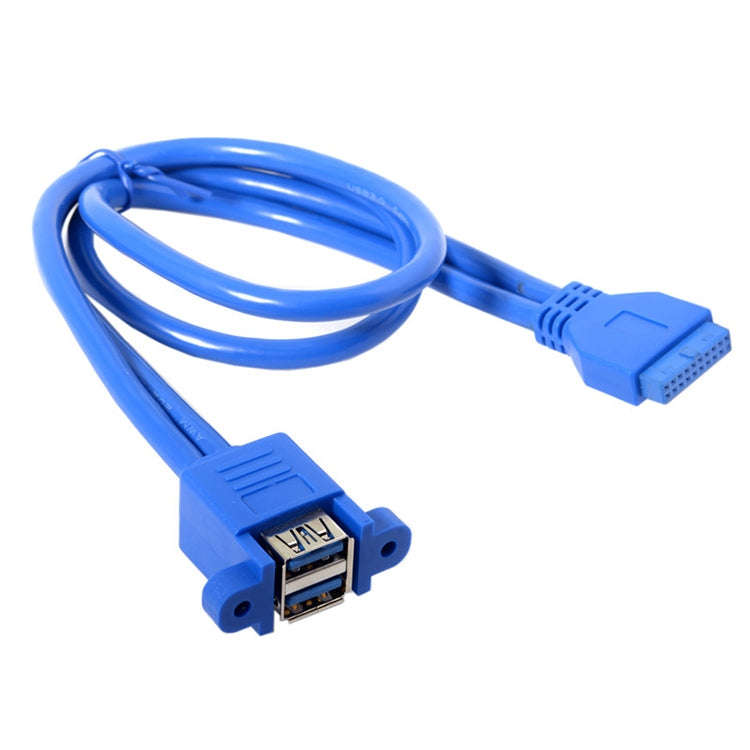

Motherboard 20pin Turn Double USB3.0 Extension Cable with Ear Baffle Cable

1. Conductor: positive standard 24,28 copper OD5.5
2. Wire standard: AWM 20276
3. Outer cover material: environmental protection PVC
4. Screw model: M3 (Distribution M3x8mm screws)
5. Single weight: 67g (including 2 M3 screws)
6. Transmission speed: 5Gbps standard, actual measurement can reach 500MB-600MB/S (test equipment is USB3.0 hard disk)

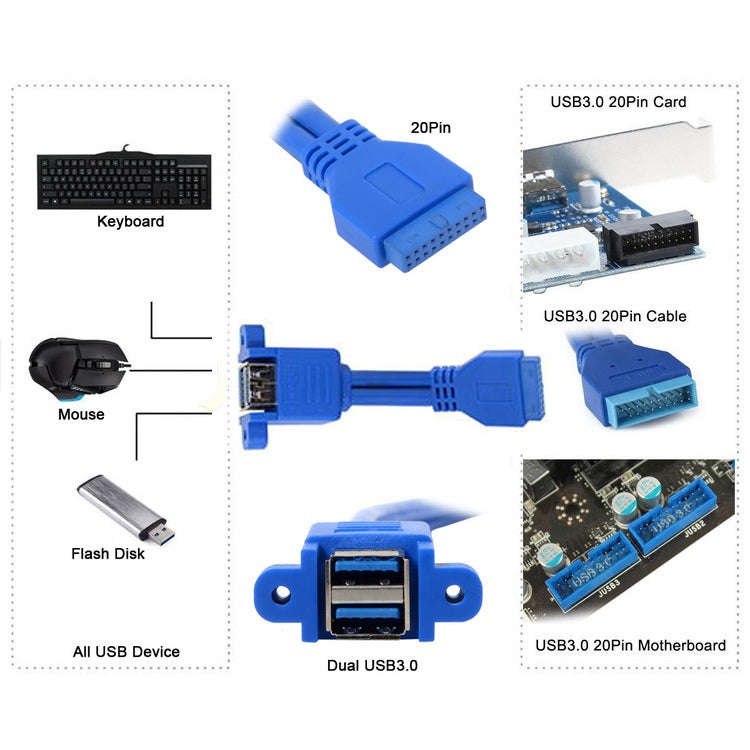

7. Interface: one double-layer dual-port standard USB3.0 A female connector, the other 19PIN female connector
8. Wire characteristics:
-Environmentally friendly wires, connectors, with excellent electrical conductivity, high-speed data transmission
-Twisted pair of data wires (impedance matching): Minimize crosstalk of data line signals!
-Elastic PVC jacket: flexible and not easy to break, durable
-Overmolding, not easy to break, durable and ensure error-free data transmission
-Inner film shielding: help reduce signal interference and ensure compatibility with current USB specifications
-Braided copper mesh and aluminum-platinum double-layer shielding: can greatly reduce electromagnetic interference and radio interference
9. Matters needing attention: This product is only a data cable. It can only run out of USB3.0 speed with USB3.0 device (hard disk box or U disk) with USB3.0 expansion card or computer with USB3.0 interface. If you use a USB2.0 device, you can only run to USB2.0 speed, and it will not speed up.
