CPU
Intel® Socket 1151for 7th/6th Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
Intel® Z170
4 x DIMM, Max. 64GB, DDR4 3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI Technology
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
3 x PCIe 2.0 x1 (black)
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, black)
1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*
2 x SATA Express port,
2 x SATA 6Gb/s port(s), black,
Intel® Z170 chipset :
Intel® Rapid Storage Technology supports*2
Supports Intel® Smart Response Technology*2
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1
ROG SupremeFX 20158-Channel High Definition Audio CODEC
- 2VRMS Headphone Amp into (32-600Ohms)
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- DTS Connect
- SupremeFX Shielding Technology
- ESS® ES9023P
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB Ports
8 x USB 3.0 port(s) (4 at mid-board)
Intel® Z170 chipset : *4
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® Z170 chipset :
2 x USB 3.1 port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel® USB 3.1 controller :
ASMedia® USB 3.1 Gen 1 controller :
4 x USB 2.0 port(s)
ROG Exclusive Features
CrossChill EK (Hybrid air and liquid cooling)
ROG RAMCache
- One-click Overclocking
- DirectKey
ROG Armor (including top cover and SECC steel backplate)
ROG RAMDisk
- O.C. Profile
- GPU.DIMM Post
Mem TweakIt
Start Button
Reset Button
ROG Aura
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
UEFI BIOS features :
- Tweakers´ Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
Special Features
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
- Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
- HyStream
Remote Entertainment
- ASUS Fan Xpert 3
- Media Streamer
RAMCache
ASUS Wi-Fi GO!
- USB 3.1 Boost
- Mobo Connect
- Push Notice
- Disk Unlocker
- Ai Charger+
- Anti-Surge
- ASUS USB BIOS Flashback®
- MemOK!
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
ASUS Exclusive Features :
- AI Suite 3
- PC Cleaner
ASUS Quiet Thermal Solution :
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Operating System Support
Windows® 8.1
Windows® 7
Windows® 10

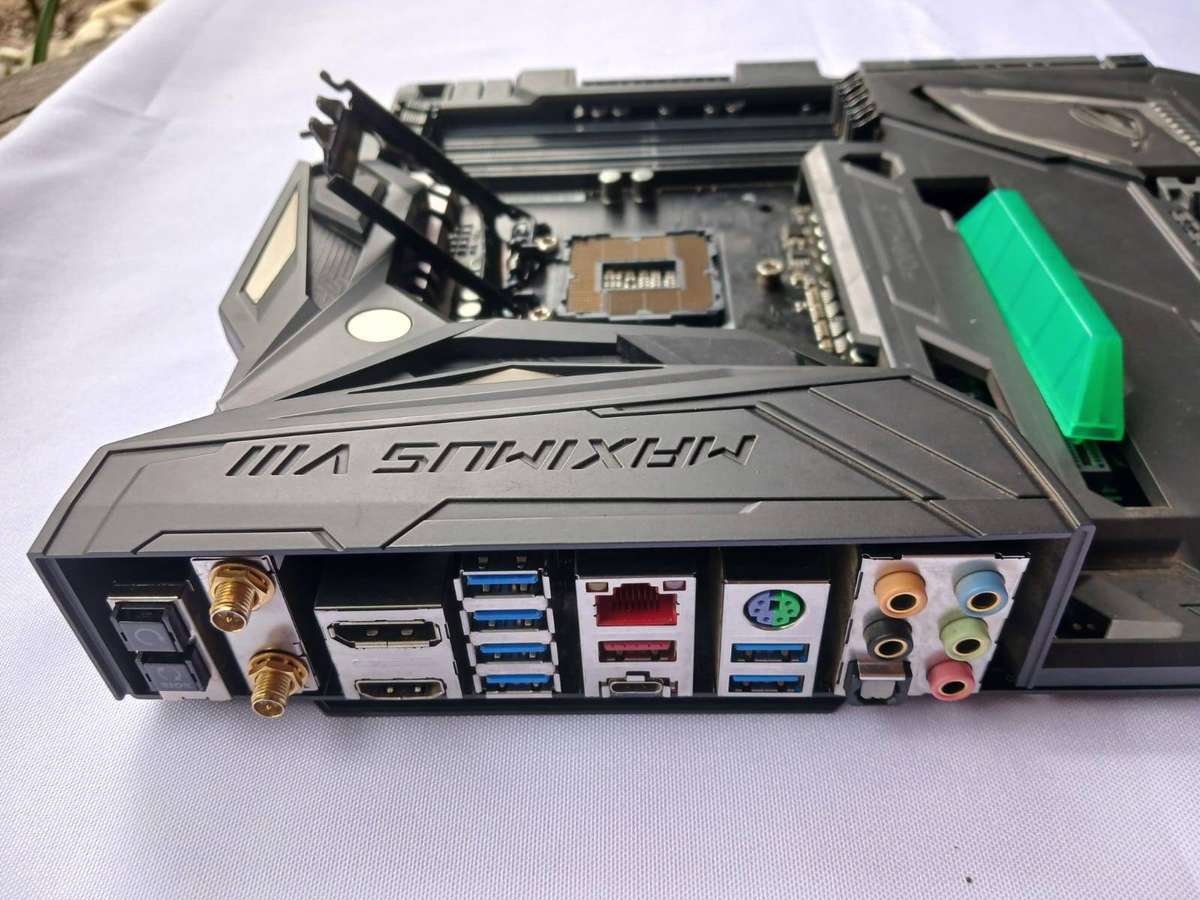

Back I/O Ports
1 x USB 3.1 Gen 2 (red)Type-A,
1 x USB 3.1 Gen 2 (black)USB Type-CTM
2 x Wi-Fi antenna port(s)
6 x USB 3.1 Gen 1 (blue)
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
Internal I/O Ports
2 x SATA Express connector: , Compatible with 4 x SATA 6.0 Gb/s ports
4 x Chassis Fan connector(s) (4-pin)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
3 x Thermal sensor connector(s)
1 x Aura RGB Strip Headers
1 x ROG extension (ROG_EXT) header(s)
1 x CPU Fan connector(s) (4-pin)
1 x CPU OPT Fan connector(s) (4-pin)
1 x MemOK! button(s)
1 x System panel(s) (Q-Connector)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Power-on button(s)
1 x Reset button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)

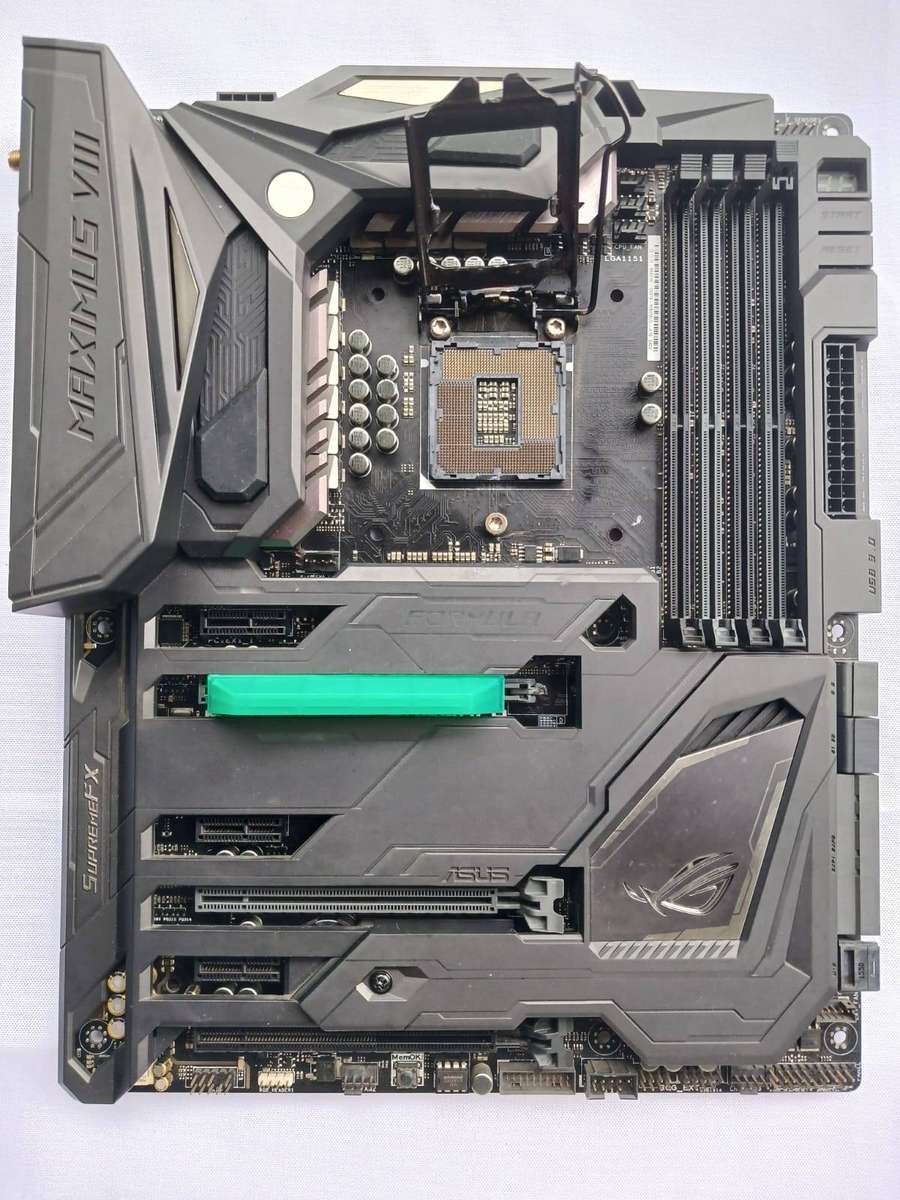

Please note that the top pcie slot s faulty. The other 2 works perfectly and are both 16x slots
Perfect working condition. Please whatsapp or email
