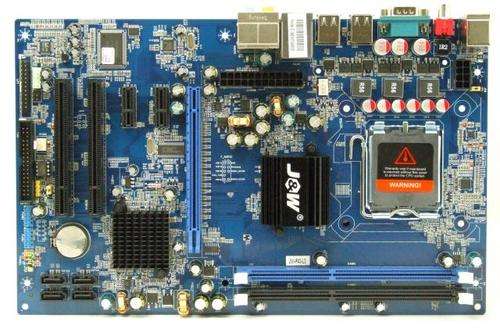

Motherboard J&W LGA 775 DDR3

Processor

1. LGA775 for Intel® Core™ 2 Quad, Core™ 2 Duo, Pentium^® Dual Core, Celeron^® processors

Chipset

1. Intel^® P43 + ICH10
2. Realtek^® RTL8111DL Gigabit Ethernet Controller
3. Super I/O: Winbond W83627DHG-P chip
4. Realtek ALC888 8-Channel HD Audio Codec
5. 8M bit flash ROM

Front Side Bus

1. 1333/1066/800 MHz FSB

Memory

1. Type: Dual Channel DDR3 1333/1066/800 MHz memory support
2. Max capacity: 8 GB
3. DIMM slots: 2

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 4 x SATA 3Gb/s connectors (Support AHCI)
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF In header
10. 1 x S/PDIF Out header
11. 2 x USB 2.0 headers for additional 4 USB 2.0 ports (by cables)
12. 1 x LPT header
13. 1 x buzzer header

Expansion Slots

1. 1 x PCI-E x16 Gen. 2 slot
2. 2 x PCI-E x1 slots
3. 2 x PCI slots

   Rear Panel I/O

4. 1 x PS/2 Mouse port
5. 1 x PS/2 Keyboard port
6. 1 x Coaxial S/PDIF Out port
7. 1 x COM port
8. 6 x USB 2.0 ports
9. 1 x RJ45 LAN port
10. 6 x Audio ports (Line In / Line Out / MIC In / Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)

    Form Factor

11. ATX
12. 185mm x 295mm

    H/W Monitoring

13. Winbond W83627DHG-P
14. System health status auto-detect and reported by BIOS

BIOS

1. 8Mbit flash ROM, AMI BIOS
