Specification:

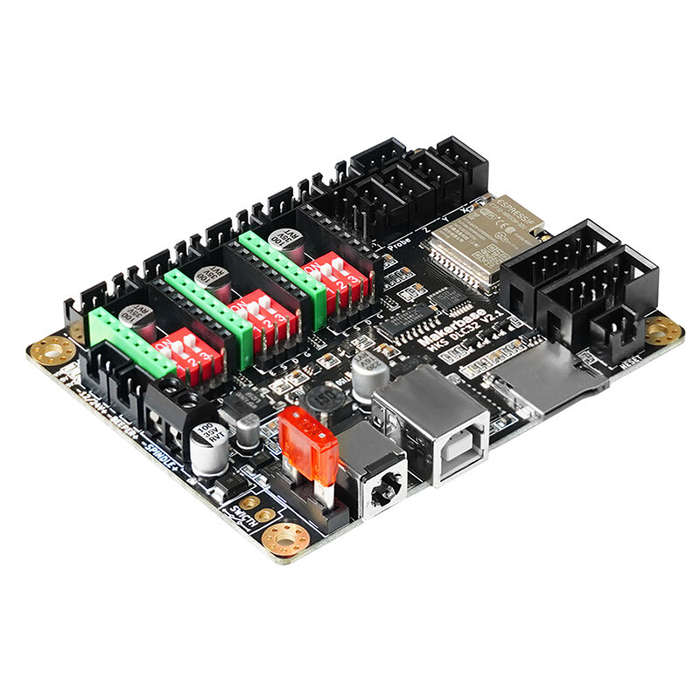

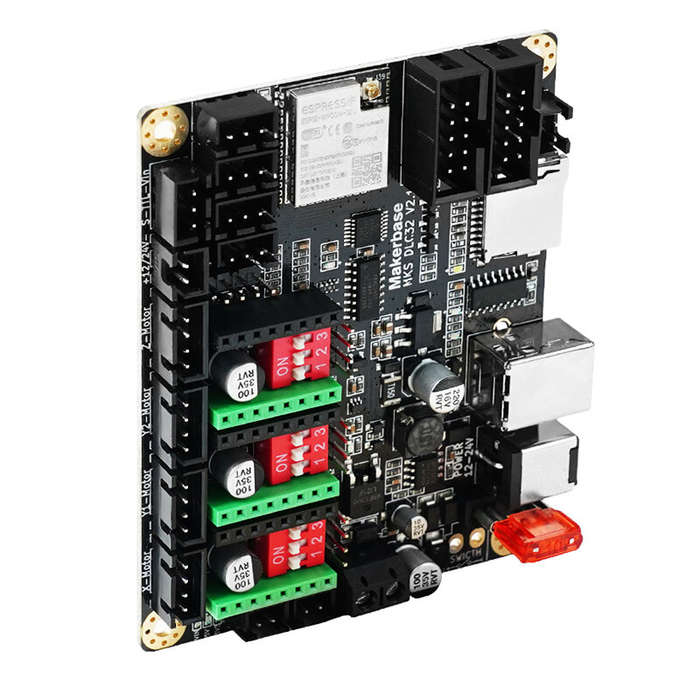

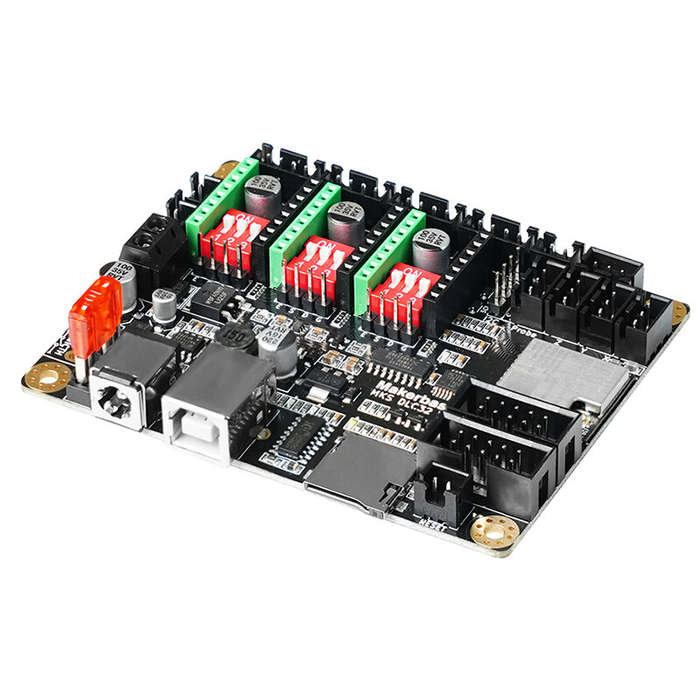

Item Model: MKSDLC32
Dimensions: 90*70mm
Input Voltage: 12V-24V DC (<10A)
Microcontroller Unit: ESP32-WROOM-32U (32-Bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
RAM: 520KBytes
Max Laser Speed: <8000mm/min
Offline Display: MKSTS24-R/TS35-R
Firmware: GRBL
USB Serial Driver: CH340
Axis Control: 4 (X, Y1, Y2, Z)
Built-in WiFi: Supported
Web Interface: Supported
Mobile App: Supported
SD Card Slot: Supported
MKSLaser Tool: Supported
Compatible Machines: CNC Laser Engravers
Stepper Drivers: A4988, DRV8825, TMC2208/2209/2225 (for Nema17 motors)
Additional Driver Options: TB6600/TMC2160 (for Nema23 motors)
Laser Power: Below 20W (For > 20W, use additional power supply)
Compatible Software: LaserGrbl, Xloader, GrblController, Benbox, mDraw, LightBurn
