Motion sensor Micro Wave Radar Module 5.8Ghz (3.3-20V) 6-9M **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

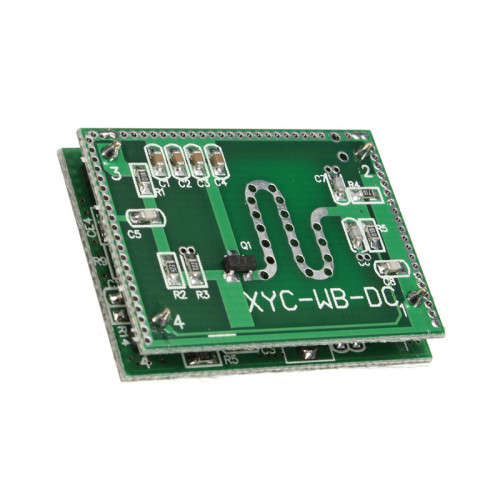

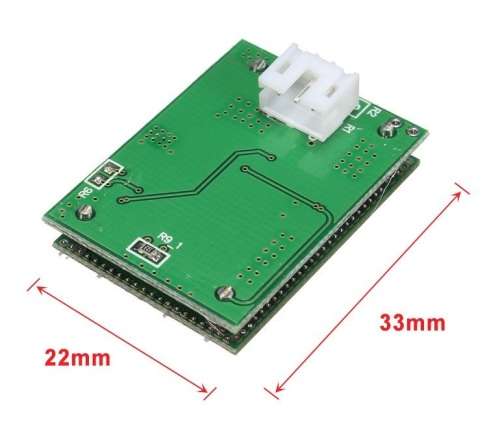

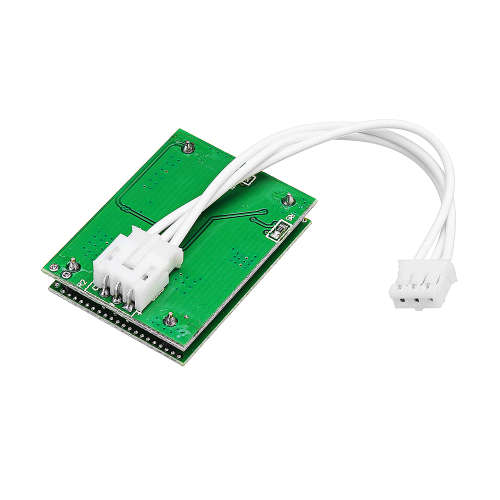

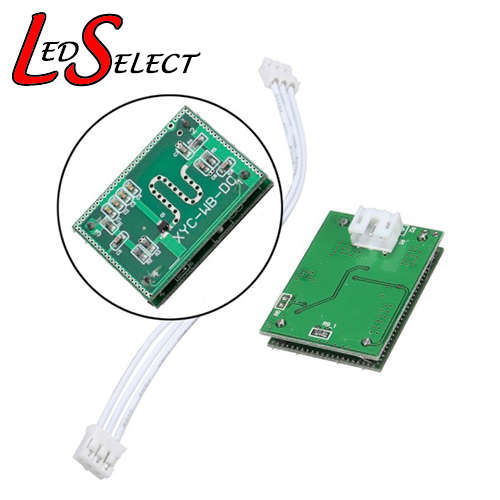

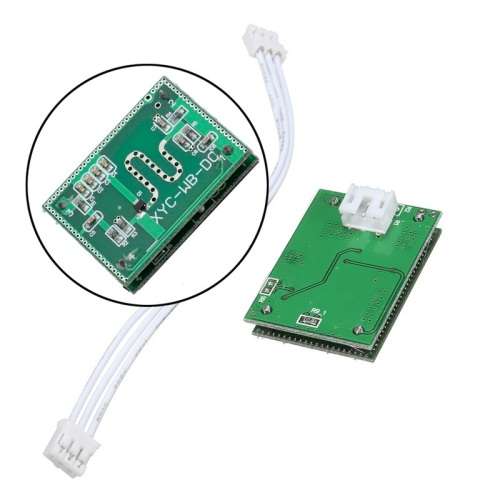

Sensor Motion Micro Wave Radar 5.8Ghz (3.3-20V) 360Deg 6-9M :
Category: 3100312645 - Sensor
Specifications:
Working Voltage: 3.3-20V DC
Standby Quiescent Current: <3mA
Transmit Power: <2mW
Working Environment Temperature: -20° to +80°
Trigger: Repeat Trigger
The Output Signal: TTL level; high->3.3V/Low->0V
Detection Angle: 360°(spherical) no dead ends
Detection Range: 6-9 meters (The default setting 8 meters)
Features:
This is a doppler radar micro wave motion sensor module which can act as an alternative to a PIR motion sensor. Instead of sensing changes in infra red radio emitted by a moving person this sensor uses a microwave Doppler radar to detect moving objects. It has a sensitivity range of ~9 meters. This Device can sense motion through objects Eg. roof, cupboard, Wall, etc.
Application:
1. Security
2. Intelligent Lighting
3. Body sensors toys
4. Industrial automation and control
5. Auto-sensing electrical equipment
6. Battery-powered automatic control
