Name: Motor Driver 1A Dual TB6612FNG
SKU: MEC-00007
Price: 202.23 ZAR
Availability: InStock

Motor Driver 1A Dual TB6612FNG

2 available / new

Only 2 left – grab it before it’s gone!

R202.23

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Netram Technologies663

98.56 % Positive ratings

Get it now, pay later

Condition

New

Location

South Africa

Product code

MEC-00007

Bob Shop ID

633481450

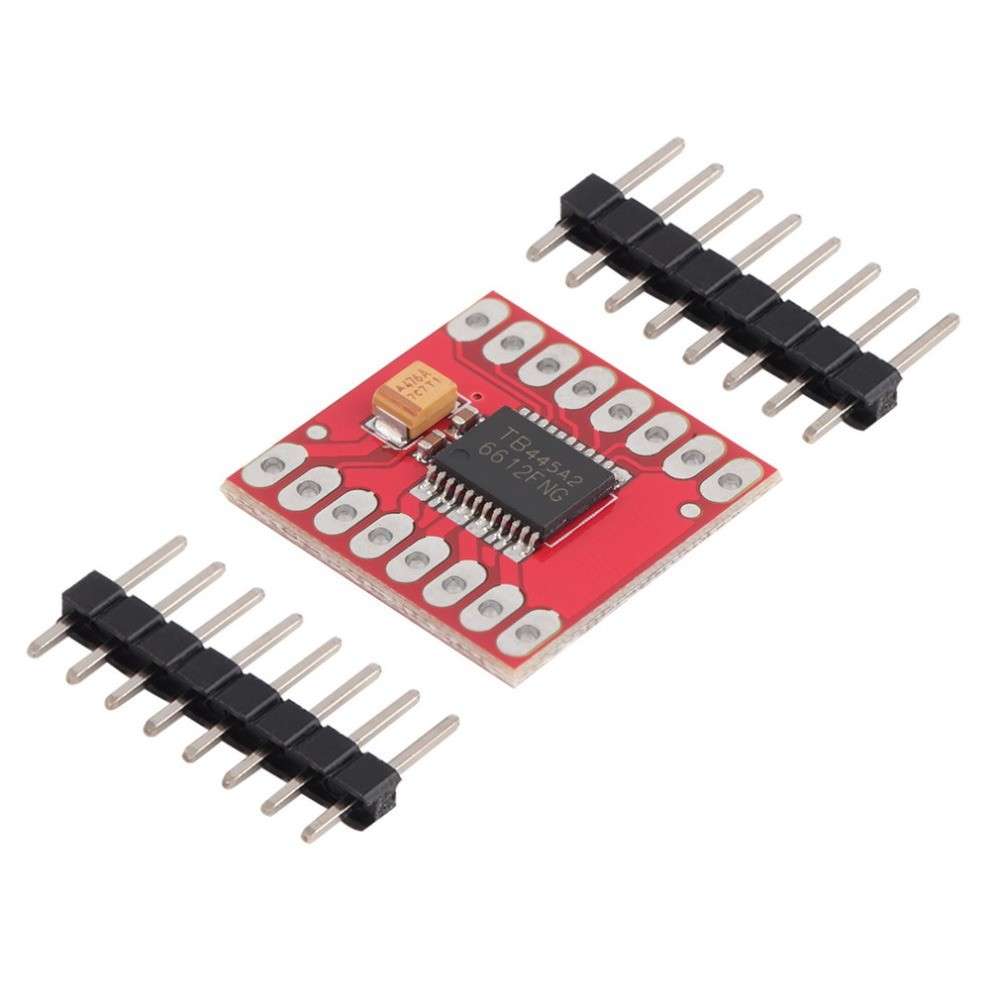

The TB6612FNG (308k pdf) is a great dual motor driver that is perfect for interfacing two small DC motors such as our micro metal gearmotors to a microcontroller, and it can also be used to control a single bipolar stepper motor. The MOSFET-based H-bridges are much more efficient than the BJT-based H-bridges used in older drivers such as the L298N and Sanyo's LB1836M, which allows more current to be delivered to the motors and less to be drawn from the logic supply (the LB1836 still has the TB6612 beat for really low-voltage applications).

Our little breakout board gives you direct access to all of the features of the TB6612FNG and adds power supply capacitors and reverse battery protection on the motor supply (note: there is no reverse protection on the Vcc connection).

In a typical application, power connections are made on one side of the board and control connections are made on the other. All of the control inputs are internally pulled low. Each of the two motor channels has two direction control pins and a speed control pin that accepts a PWM input with a frequency of up to 100 kHz. The STBY pin must be driven high to take the driver out of standby mode.

Features and Specifications:

Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
Recommended motor voltage (VMOT): 4.5 V to 13.5 V (can operate down to 2.5 V with derated performance)
Logic voltage (VCC): 2.7 V to 5.5 V
Output current maximum: 3 A per channel
Output current continuous: 1 A per channel (can be paralleled to deliver 2 A continuous)
Maximum PWM frequency: 100 kHz
Built-in thermal shutdown circuit
Filtering capacitors on both supply lines
Reverse-power protection on the motor supply

Real-world power dissipation considerations:

The TB6612 motor driver used on the carrier board has a peak current rating of 3 A per channel. The peak ratings are for quick transients (e.g. when a motor is first turned on), and the continuous rating of 1 A is dependent on various conditions, such as the ambient temperature. The actual current you can deliver will depend on how well you can keep the motor driver cool. The carrier's printed circuit board is designed to draw heat out of the motor driver chip, but performance can be improved by adding a heat sink.
