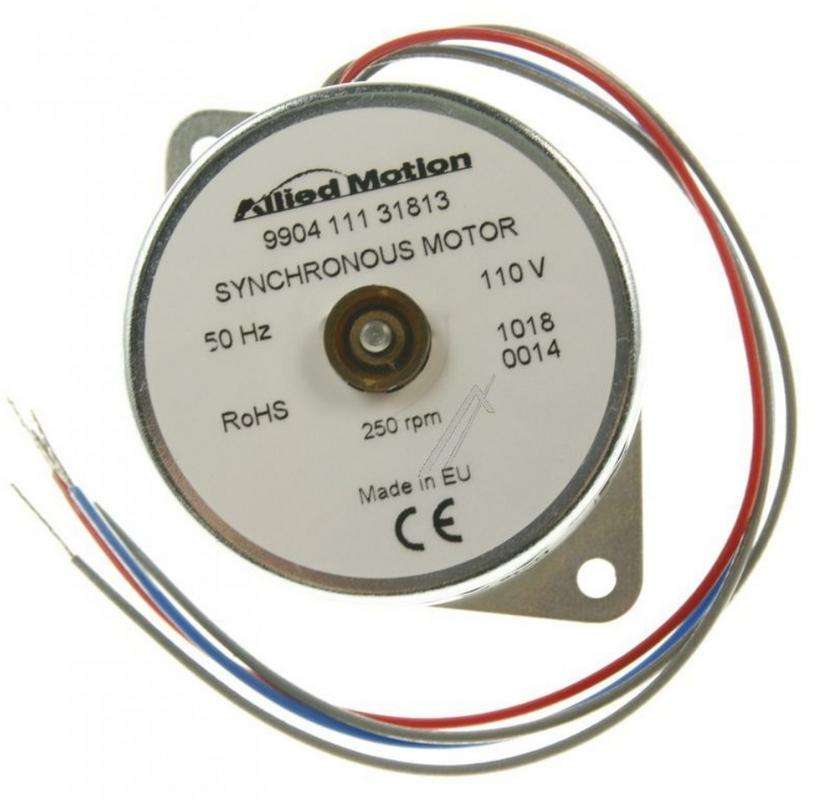

Motor, Reversible, Synchronous, 9904 111 Series, 250 rpm,

The 9904 111 31813 from Allied Motion Premotecis is a low-speed synchronousmotor and a development of the standard industrial series specifically designedfor use in high-quality record decks which utilise the belt drive principle.Particular attention has been given to the magnetisation of the 24 pole rotor tooptimise smooth running.This, together with the high accuracy of stator pole placement minimises torqueripple and provides low audible noise. The motor which is designed for mountinghorizontally with output shaft vertically up is provided with an increased shaftlength and a 3 mm diameter to aid the fitment of the drive pulley.When fitting the drive pulley the shaft rear end should be supported to ensurethat the axial load limit is not exceeded. The windings have been specificallydesigned to facilitate dual voltage operation, a 6.8K Ohm resistor being used inseries when operation from a 220 Vac supply is required. * Zinc plated housing * Slide bearings * Class 2 insulation according to CEE10 * Maximum radial force is 5N * Maximum axial force is 1.5N * Mass of 16g * Nominal voltage of 110VAC * Supply frequency of 50Hz * Reversible direction of rotation
