Motor Speed Controller PWM 6-30V 3A + Reverse Switch **LOCAL STOCK**

New
R80.00
Closed 15 Oct 19 15:49
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Free collection from Vasco Estate, Cape Town
The seller allows collection for this item and will be in contact with the full collection address once the order is ready. Ready for collection by Thursday, 16 May.
Ready to ship in
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later
Buyer Protection

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
CNT371
Bob Shop ID
436502884

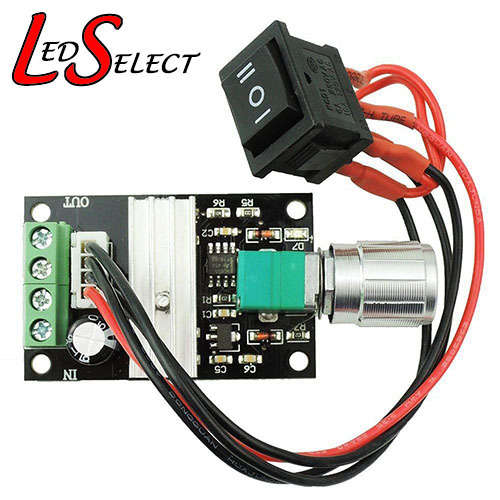

Motor Speed Controller PWM DC 6-30V 3A:

Category Code: 1500312645 / 1516312645 - Controller Motor Speed



Specifications:

Input: 6-28V DC
Current: 3A Max
PWM Range: 10 - 95%
Material: Plastic, Metal
Size: 50 x 32 x 15mm

(With potentiometer and reversible switch)



Operating Instruction:

1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a DC power supply (the DC supply voltage range is more than 6V and less than 30V). Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged.
2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent with the expected one, you can adjust the sequence of lines or switch position to change the direction.
3. Adjust the switch. Positive inversion switch is used to control the motor speed direction. When the switch is located on the zero position, the motor stops rotating.
4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output duty ratio of the regulator, then motor speed will change.
