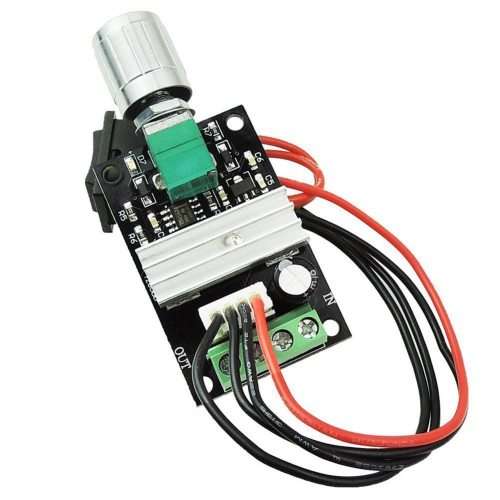

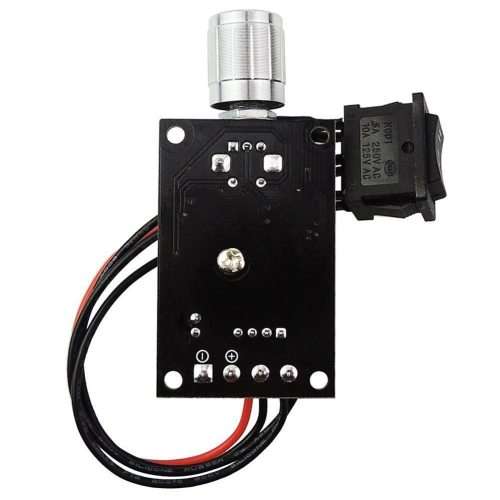

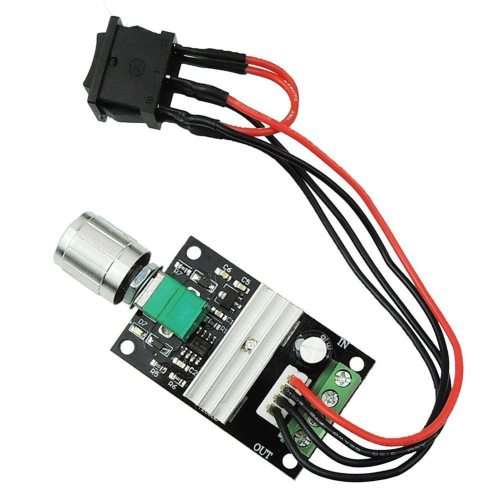

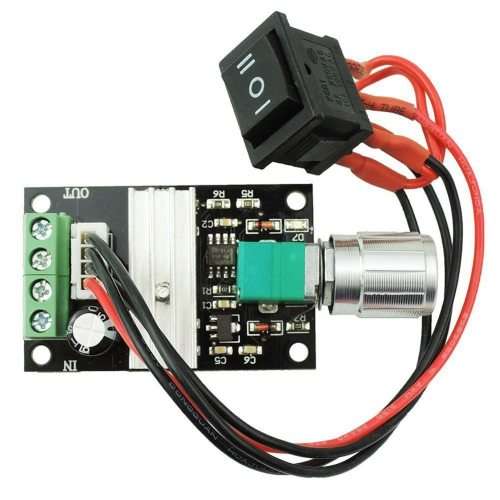

Motor Speed Controller PWM 6-30V 3A + Reverse Switch **LOCAL STOCK**

Motor Speed Controller PWM DC 6-30V 3A:

Specifications:

Input: 6-28V DC
Current: 3A Max
PWM Range: 10 - 95%
Material: Plastic, Metal
Size: 50 x 32 x 15mm

(With potentiometer and reversible switch)

Operating Instruction:

1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a DC power supply (the DC supply voltage range is more than 6V and less than 30V). Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged.
2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent with the expected one, you can adjust the sequence of lines or switch position to change the direction.
3. Adjust the switch. Positive inversion switch is used to control the motor speed direction. When the switch is located on the zero position, the motor stops rotating.
4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output duty ratio of the regulator, then motor speed will change.
