Motorcycle Anti-theft Security Alarm Remote Control Sensor SystemDescription:
100% Brand new.
Phonic alarm, it can be use to locate your motorcycle
Engine immobilization and anti-hijacking functionality
Four sensitivity alarm settings
This is a simple DIY installation unit with no special tools needed

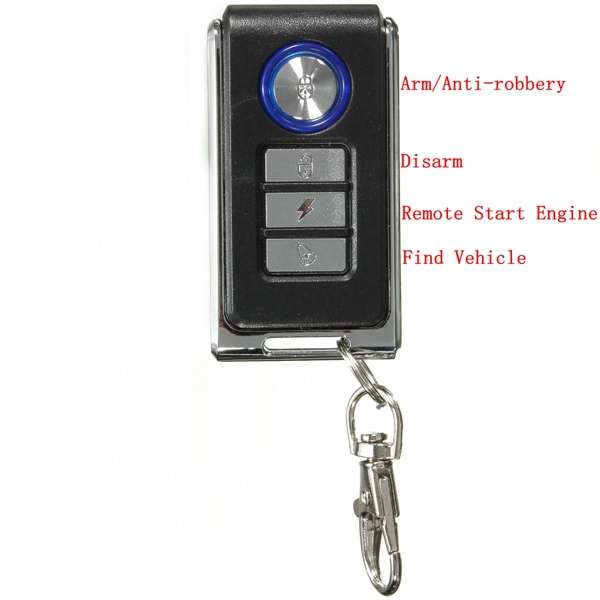

Function Key: (4 buttons)
Arm/Anti-robbery: A closed lock style
Disarm: A opened lock style
Remote Start Engine: A lightning style
Find Vehicle: A bell style
Functions:
1. Arm: Press the Arm/Antirobbery button, the indicator light flashes once, the siren beep once
and the status of alarm will be activated automatically after 3 seconds.
2. Disarm: Press the Disarm button, the indicator light flashes 2 times and the siren beep 2 times, then the alarm system is in the "Disarm" mode.
3. Remote Start ON: Within 2 seconds, the connection press the start button twice, to start the engine.
4. Remote Start OFF: In the start state, Press the Disarm button to stop the engine.
5. Find Vehicle: Press Vehicle Finder button, the indicator light flashes 15 seconds and siren beep 15 seconds,
Allow owners to find the location of the vehicle, to stop press any button.
6. Anti-robbery and Assistance: When the motocycle is bobbed and is drive away, the motorcycle owner only press the Arm/Anti-robbery button, the engine will stop at once, the siren will beep and the indicator light will flash.
7. Shock Sensor:
Warn away: After arming if any light impact, the indicator light flashes 5 times and siren beep 5 times.
Full Trigger: After arming if any heavy impact, the indicator light flashes 1 seconds and siren beep (6 tones) 15 seconds.
8. Ignition Trigger: The ignition trigger: in the alarm state, if anyone tries to ignition, the siren starts alarming and the indicators starts flashing.
9. Immobilizer: in the alarm state, the siren starts alarming, the indicator light flashes and the engine cannot be started.
10. Shock Sensor Setting: Keep pressing the fine vehicle button, the remote can adjust the sensor sensitivity of level 1 to 5,
according the number of siren beep to set level, (level 1 lowest, level 2 low, ... , level 5 highest)
Note: for remote start engine type
Note:
1. Please check the size measurement chart carefully before making payment.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4. Instruction is included.
Specifications:
Working voltage: DC 12V
Static Current: <=6mA
Working temperature: -10¿~+50¿
Remote control working voltage:DC6V/9V/12V
Remote control frequency range: 315Mhz or 433Mhz
Remote control distance: open areas >= 80M
Item Size: like the picture show.
Package Size: about 28cm(L) X 20cm(W) X 3.5cm(H)

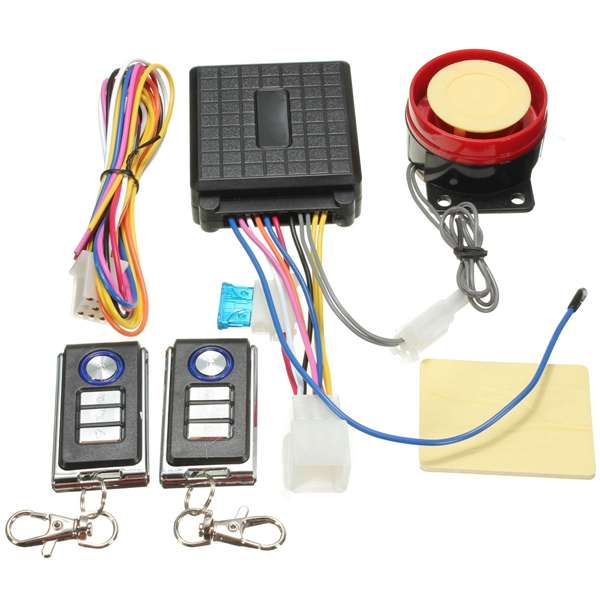

Package Included:

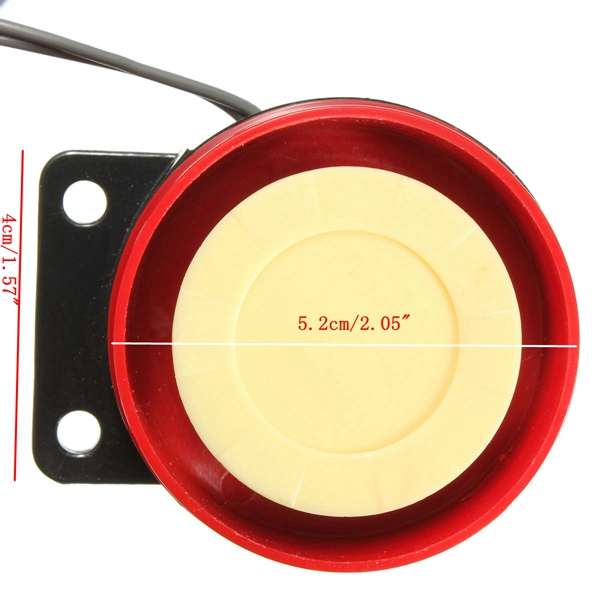

1 X Siren (125dB)

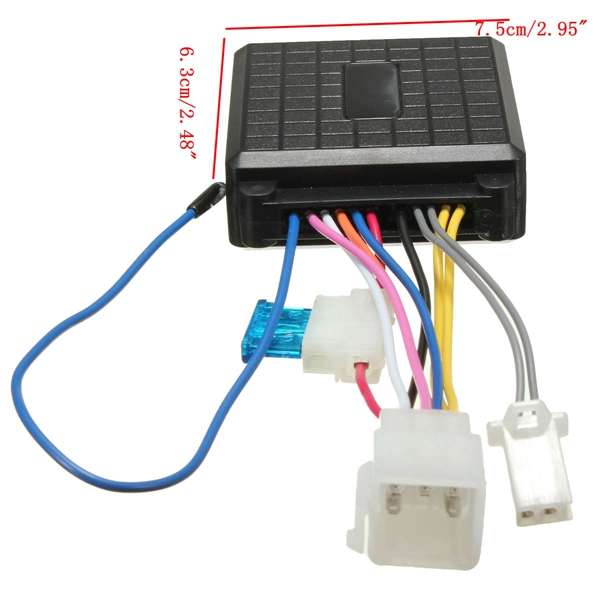

1 X Brain Module System Built-in Shock Sensor

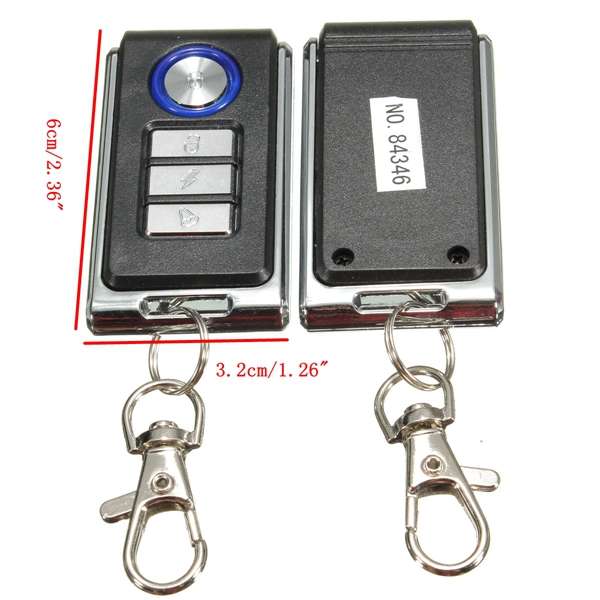

2 X Remote Controls
1 X Connection cables
1 X Sticker
