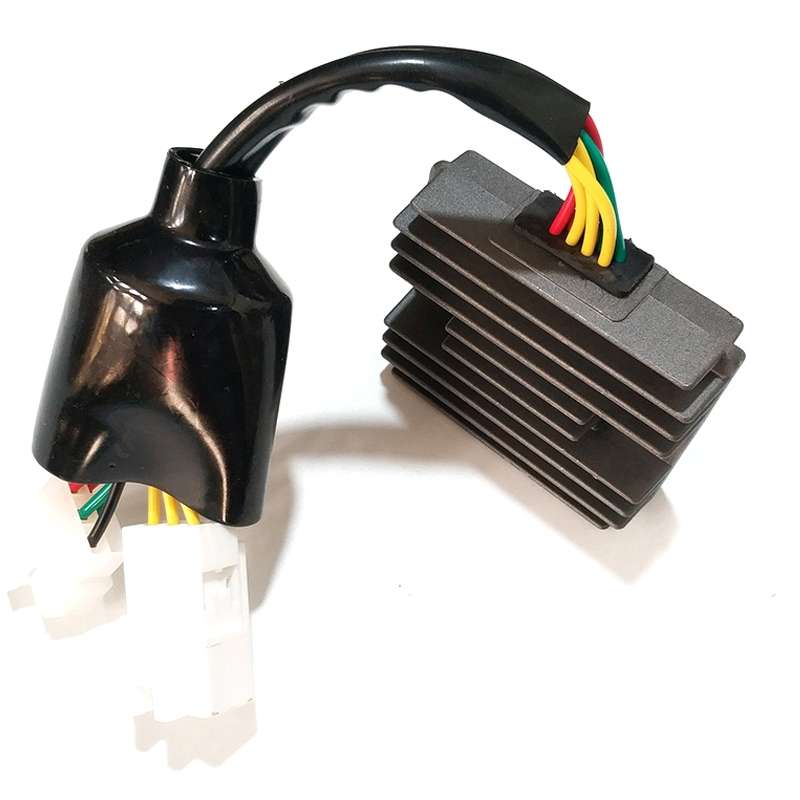

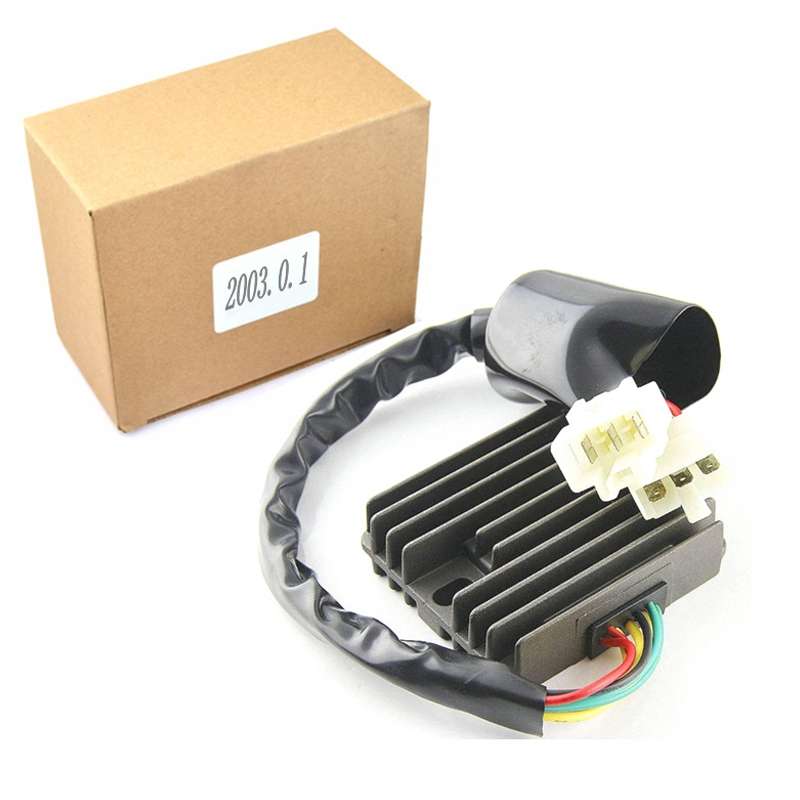

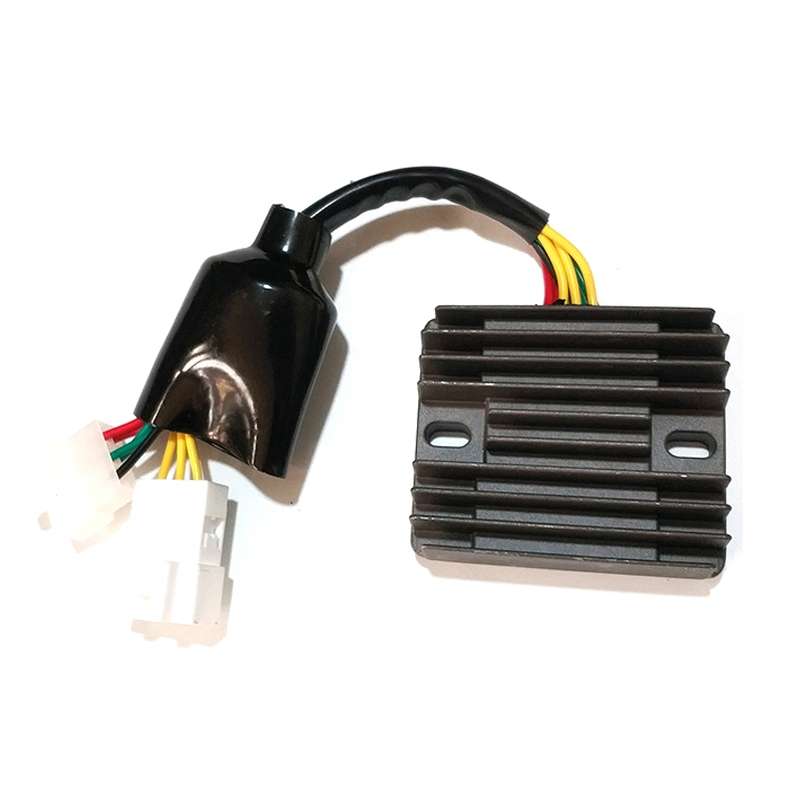

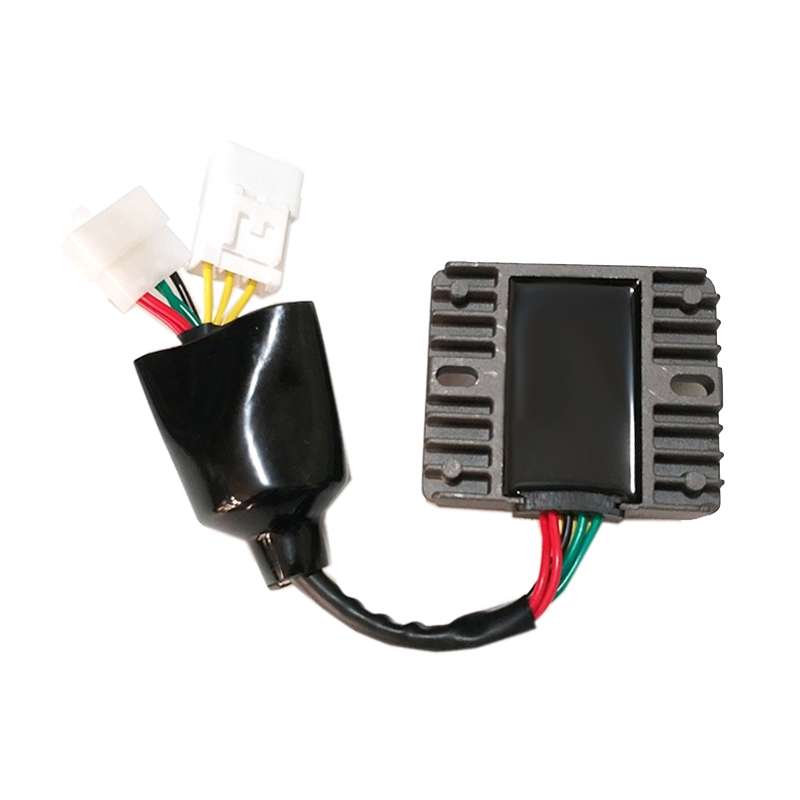

Motorcycle Rectifier For Honda CBR 954 Fireblade 900 31600-MCJ-750 SH678-DA

TBD05473084

1. Weight: 310G
2. Output voltage: 14.5V
3. Output current: 35A
4. Wire length: 1.5 square meters x 35CM

Applicable models:
For 2402
For Honda CBR 954 Firebla 900 2002 2003 31600-MCJ-750
For Reemplazo Shin Ngen SH678-DA
For 2403
For Honda 31600-MBG-D00
For Honda CBR 1100 1999 2000 31600-MAT-E01
For Honda CBR XX Blackbird 1100 1999 2000 31600-MAT-E01
For Reemplazo Shin Ngen SH579C-12

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
