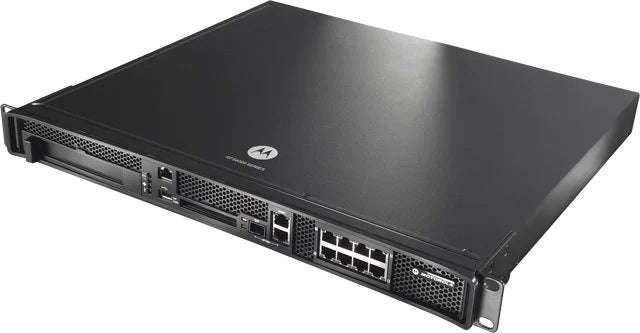

The Motorola RFS-6010 is a high-performance wireless LAN controller designed to deliver secure, scalable, and reliable wireless connectivity for enterprise networks. With support for multiple wireless standards, advanced security features, and high AP capacity, it ensures efficient wireless management across large and distributed environments.
Ideal for businesses needing centralised control of wireless networks, it supports robust roaming capabilities, role-based firewalling, and quality of service for mission-critical applications.
Key Features & Benefits
Enterprise-Grade Wireless Management Centralises control for up to 48 AP300 or 256 Adaptive APs per switch.
High Port Density Eight Gigabit Ethernet ports with PoE for flexible deployment.
Advanced Security Role-based firewall, IPSec VPN, wireless IDS/IPS, and multiple authentication methods.
Scalable Architecture Supports up to 20,000 users and 32 WLANs with clustering capabilities.
Optimised Performance Features QoS, multicast support, and intelligent RF management for reliable connectivity.
Ideal Uses
Enterprise Campuses Manage large-scale wireless deployments with high security.
Hospitals & Healthcare Provide secure, high-availability Wi-Fi for staff and patients.
Retail Chains Centralise wireless management across multiple store locations.
Education Facilities Support high client density in classrooms and lecture halls.
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Product Type: Wireless LAN Controller
Model: RFS-6010
Fixed Ports:
8 × 10/100/1000 Ethernet with PoE (29.7W per port)
1 × 10/100/1000 Uplink (RJ45/SFP combo)
1 × 10/100 Management Port
1 × USB 2.0 Host
1 × Express Card Slot
1 × Serial Console Port (RJ45)
Wireless Standards: 802.11 a/b/g/n
Max APs per Switch: 48 AP300 / 256 Adaptive APs
Max APs per Cluster: 576 AP300 / 3072 Adaptive APs
User Capacity: 2,000 to 20,000
WLAN Support: Up to 32 WLANs
VLAN Support: VLAN mapping, ESSID to VLAN, MAC/Policy-based assignment
MAC Address Table: 256K
RF Management: DFS, TPC, Automatic Channel Selection, SMART RF
Roaming: Opportunistic scanning, credential caching
Firewall: Role-based Layer 27 Stateful Inspection
Firewall Sessions: 100,000 per switch / 1,200,000 per cluster
Authentication: PSK, 802.1x (TLS, TTLS, PEAP), Kerberos, RADIUS
VPN: IPSec with DES, 3DES, AES (128/256); 1,024 tunnels per switch
Wireless IDS/IPS: Rogue AP detection, DoS protection, client blacklisting
QoS: 802.1p, DiffServ/TOS, TSPEC, WMM, SIP CAC
Multicast Support: IGMP Snooping
Management: SNMP v1/v2c/v3, Syslog, CLI (Telnet, SSH v2), HTTPS, TFTP
Power Input: 90264V AC, 50/60Hz
Max Current: 6A @ 115V, 3A @ 230V
Power Consumption: 665 BTU/hr
Form Factor: 1U Rackmount
Dimensions: 44.45 mm (H) × 440 mm (W) × 390.8 mm (D)
Weight: 6.35 kg
Operating Temperature: 0°C to 40°C
Storage Temperature: 40°C to 70°C
Operating Humidity: 5% to 85% (non-condensing)
Certifications: EMC (EN 55022, FCC Part 15 Class B), Safety (UL 60950-1, EN 60950-1), Environmental (RoHS)
Warranty: 3 Month Carry-in Warranty
What's in the Box: RFS-6010 Wireless LAN Controller
