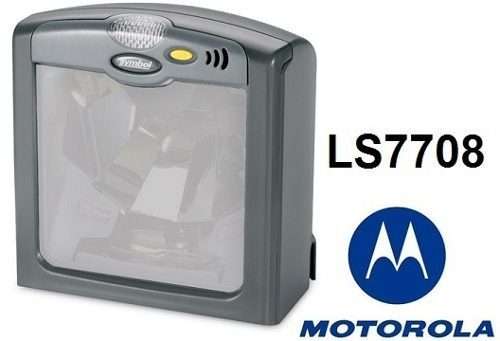

Motorola Symbol LS7708 hands-free USB Barcode Scanner
Product Description
· Rastering scan pattern: Maximizes first-pass read rates and even reads truncated bar codes
· GS1 DataBar decoding: Supports GS1 DataBar bar codes to future-proof your investment
· Multi-interface capability: Allows migration to other hosts with the switch of a cable
· Universal cables: Saves money by using one cable across the Motorola product line
· Scan stitching: Improves first-pass read rate and increases productivity
Manufacturer: Motorola
Physical parameters
Dimensions with bracket: 6.3 inches high x 5.98 inches wide x 3.73 inches thick, 16 cm high x 15.2 cm wide x9.5 cm thick
Weight Scanner only part: 2.04lbs/925g
Power from the host terminal or external power source to obtain power supply: varies with the type of host.
Voltage 5.5VDC-4.75VDC
Rated current 390mA
Power 2W
Whole mount bracket installation options
Color Cash Register White or Black
Performance parameters
Light Source 650nm visible laser diode
Print Contrast 25% minimum reflective difference
Static scan mode: 24 chain line; grating: 120 scan lines
Static scan rate: 2400 scans per second grating: 12,000 scans per second
Depth of field 13mil (100% UPC / EAN) 0-10 IN./0-25.4cm
Rated operating range 5 mil (38%) 0.5-2.5 in./1.27-6.4 cm
7.8 mil (60%) 0-5 in./0-12.7 cm
10.4 mil (80%) 0-7.5 in./0-19 cm
13 mil (100%) 0-10 in./0-25.4 cms
5 mil minimum resolution
Decode Capability UPC / EAN / JAN.UPC / EAN with Supplementals, UCC / EAN 128, Code 128, ISBT 128,
Code 39, Code 39Trioptic, Interleaved 2of5, Discrete 2of5, Code 93, Code11, Codabar, MSI, RSS variants
