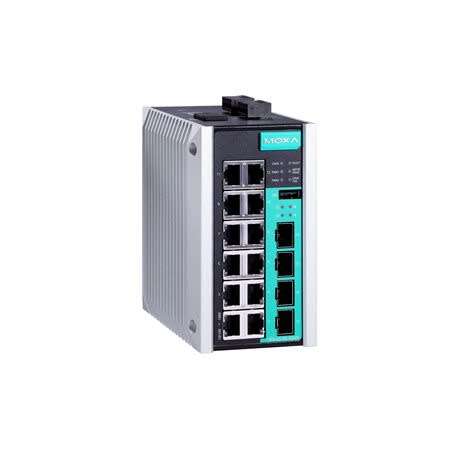

EDS-G516E-4GSFP-T
EDS-G516E Series
16-port full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 Gigabit SFP slots, -40 to 75°C operating temperature
Input/Output Interface
Alarm Contact Channels
1
Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)
12
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100/1000BaseSFP Slots
4
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
Filter
802.1Q VLAN
BPDU Filter
BPDU Guard
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN
Industrial Protocols
EtherNet/IP
Modbus TCP
PROFINET IO Device
Management
LLDP
Back Pressure Flow Control
BOOTP
Port Mirror
DHCP Option 66/67/82
DHCP Server/Client
Fiber check
Flow control
IPv4/IPv6
RARP
RMON
SCP
SMTP
SNMP Inform
SNMPv1/v2c/v3
Syslog
Telnet
TFTP
MIB
Ethernet-like MIB
MIB-II
Bridge MIB
P-BRIDGE MIB
Q-BRIDGE MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB
Redundancy Protocols
Link Aggregation
MRP
MSTP
RSTP
STP
Turbo Chain
Turbo Ring v1/v2
Security
Broadcast storm protection
HTTPS/SSL
TACACS+
SNMPv3
MAB authentication
Sticky MAC
NTP authentication
MAC ACL
Port Lock
RADIUS
SSH
SMTP with TLS
Time Management
NTP Server/Client
SNTP
Switch Properties
IGMP Groups
2048
Jumbo Frame Size
9.6 KB
MAC Table Size
8 K
Max. No. of VLANs
256
Packet Buffer Size
4 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
USB Interface
Storage Port
USB Type A
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL
Serial Interface
Console Port
USB-serial console (Type B connector)
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Input Current
0.39 A @ 24 VDC
Input Voltage
12/24/48/-48 VDC
Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Weight
1440 g (3.18 lb)
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
UL 508
EMC
EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous Locations
ATEX
Class I Division 2
Maritime
DNV-GL
LR
ABS
NK
Power Substation
IEC 61850-3
IEEE 1613
Railway
EN 50121-4
Traffic Control
NEMA TS2
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
Time
805,491 hrs
Standards
Telcordia (Bellcore), GB
