EDS-508A-MM-SC
Layer 2 Managed Switches
Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.
EDS-508A-MM-SC
Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature
Input/Output Interface
Alarm Contact Channels
2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
2
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
6
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)
2
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Optical Fiber
Ethernet Software Features
Filter
802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial Protocols
EtherNet/IP, Modbus TCP
Management
IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
MIB
MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Security
HTTPS/SSL, TACACS+, Port Lock, RADIUS, SSH
Time Management
NTP Server/Client, SNTP, IEEE 1588v2 PTP (software-based)
Switch Properties
IGMP Groups
256
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
LED Interface
LED Indicators
PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface
Turbo Ring, Master, Coupler, Reserve

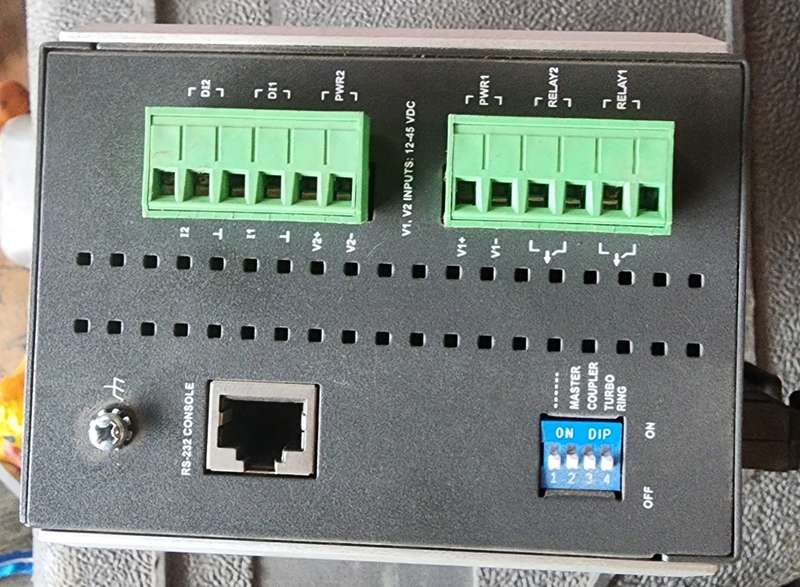

Power Parameters
Connection
2 removable 6-contact terminal block(s)
Input Voltage
12/24/48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Input Current
0.30 A @ 24 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight
1040 g (2.3 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508
Hazardous Locations
ATEX, Class I Division 2
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Freefall
IEC 60068-2-31
MTBF
Time
1,043,909 hrs
Standards
Telcordia (Bellcore), GB. Does not come with original box was an display item and box got missing
