MP3 Player KIT Module
PLAYS MP3 from IDE hard drive
Uses PIC Microchip proccessor
Pic18C452
VLSI DSP - VS1001K
AMPire 12232 GRAPHIC LCD 122x32 DOTS BL

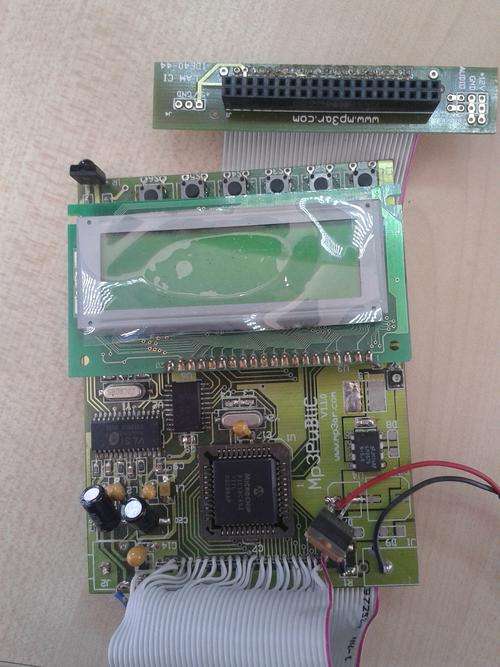

**************ELECTRONICS PROJECT AS SEEN IN THE PICTURE*************
Tech Specs
MPEG audio layer 3 decoder (ISO11172-3)
² Supports MPEG 1 & 2, and 2.5 extensions,
all their sample rates and bit rates, in mono
and stereo
² Supports PCM input
² Supports VBR (variable bitrate)
² Low-power operation
² On-chip high-quality stereo DAC with no
phase error between channels
² Internal Op-Amp in BGA-49 and LQFP-48
packages
² Stereo earphone driver capable of driving a
30⦠load.
² Separate 2.5 .. 3.6V operating voltages for
analog and digital
² 4 KiB On-chip RAM for user code
² Serial control and data interfaces
² New functions may be added with software
***************** TESTED AND ITEM WORKING 100% *********************
