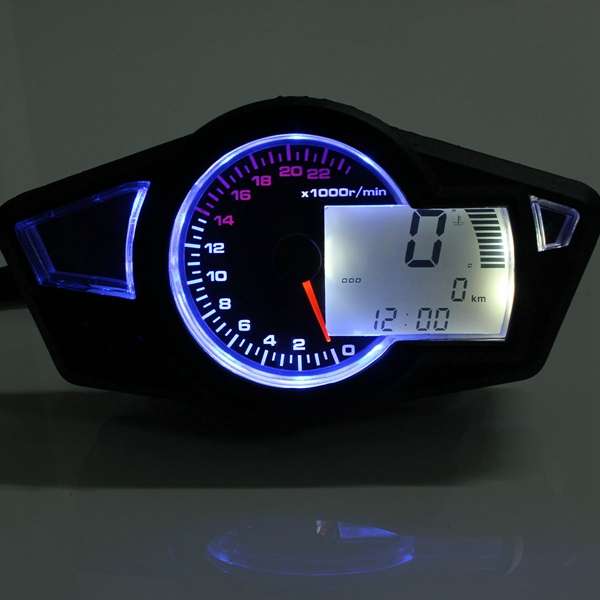

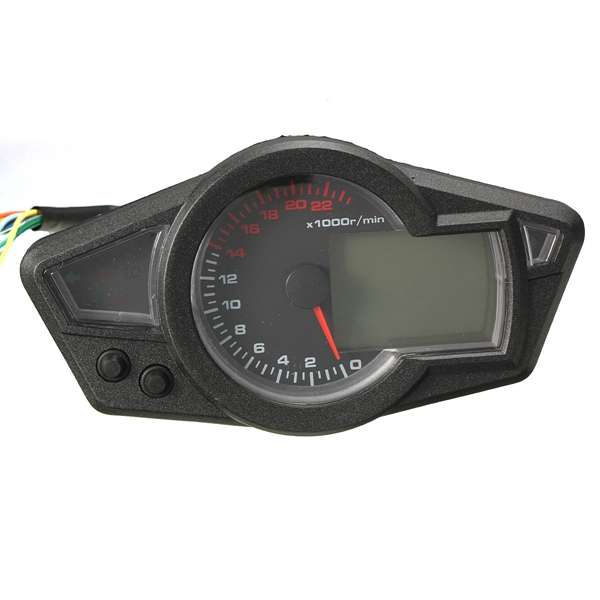

Description: This speedometer can set for the tire size (inch) or RIM Diameter(inch) of your motorcycle, such as 10" , 13" , 17"...
-Speed Display(km/mph)
-

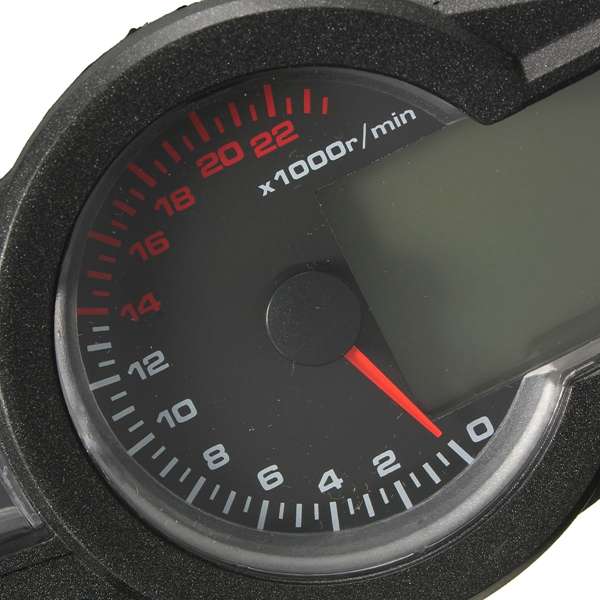

22000 RPM Display
-Fuel Level Table
-Show time (hours & minutes)
Installation Notes:-No friction or contact between the hall probe and the magnet.
-Engine rotate speed comes from the ignition signal. The sensor wire is normally contacted with
the positive side of the magnetor or directly wired on the rectifier.
-Oil Mass can be wired on the original sensor.
-
Do NOT wired on the headlight if it had been modified as the HID Xenon light. Instead, connect it on the headlight control wiring.
Setting:1.Adjust time:when the odometer display ODO,long press the light button about 3S to enter the adjusting,
then short press the right and left button can be adjusted the minute and hour
2.Adjust tire size:When the screen display ODO,long press the left button for 3S to enter the justing,
then press right and left button shortly adjust the cirumference
3.After adjusted the tire size,then press the left button to set up the fuel level,kilometer/mile,speed
3.When the screen display "5-1-2"
First number:short press right button oil sensor choose:1.oil sensor 100;2.oil sensor 50
Second number:mile/kilometer/ choose,short press right button to choose:1:kilometer will dispaly KM;2:Miles
will display Mph
Last number:Speed conversion,short press right button to choose:2,2 cylinder;4,4cylinder
How to adjust this clock to fit your bike size if you bike tire is 13'' 17'' 18'' 19'' 21''
1 .contact the power wire and put the 1st black button in the left
2. please adjust flower the below number
10"--1300
17''- 1800
18'' -1900
19'' -2000
21''- 2300

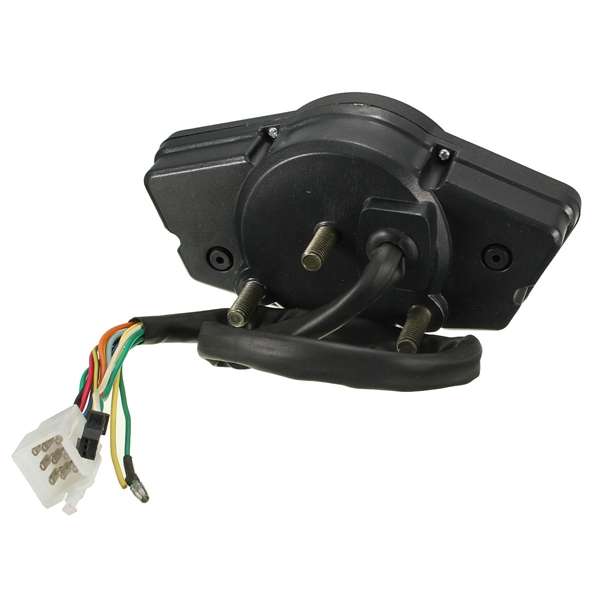

Wiring cable:Orange line:left turn signal light
Light blue line:Right turn signal light
Blue line:low-high beam indicates
Blue and white wire: water temperature
Yellow and white:gasoline sensing line
Black and yellow line:speed (connected to the engine pulses)
Red wire:Positive
Green wire:negative
Black wire:electric door lock switch (positive control off-line power door locks, can be directly connected to the positive of the fuel gauge )
Green and yellow wire:handbrake parking indication
Wiring instructions:1.orange left turn
2.blue sky right turn
3.dark blue lighthouse witnesses
4.green and white coolant temperature
5.yellow and white fuel gauge (or -).
6.black and yellow signal has turn (+ coil or rectifier).
7.red clock (+)
8.green ground (-)
9.Black + after ignition or pilot
10.green and yellow brake or witnessed death bridge
Specifications:-Power voltage: 12V
-Operating temperature: -30 ¿¿¿ ~ 80¿¿¿
-Storage temperature: -35 ¿¿¿ ~ 85 ¿¿¿

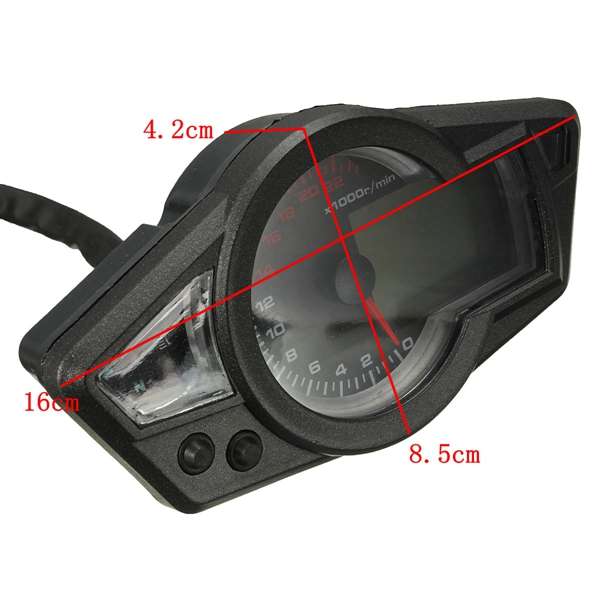

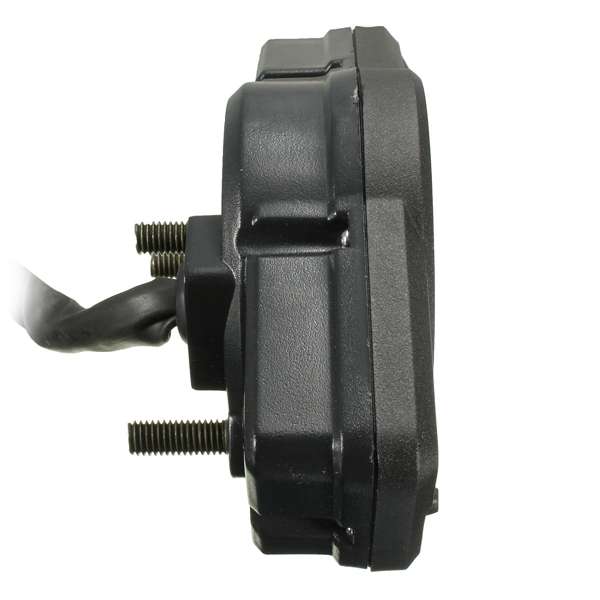

-Size: Approx 16 x 8.5 x 4.2cm
-Quantity:1pc

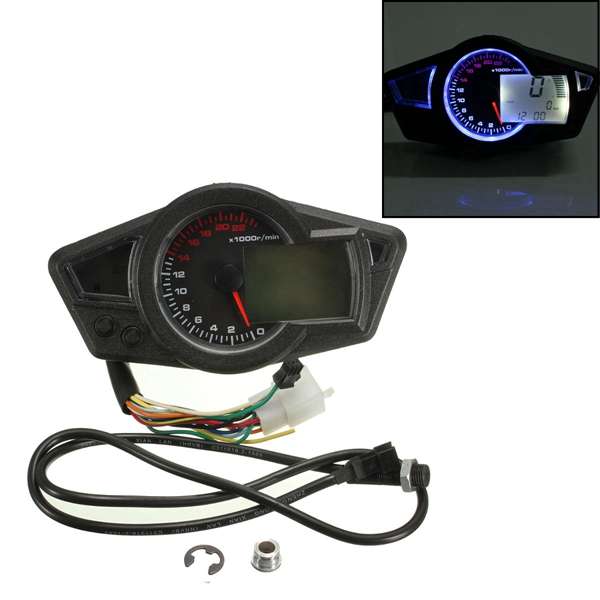

Package Includes:

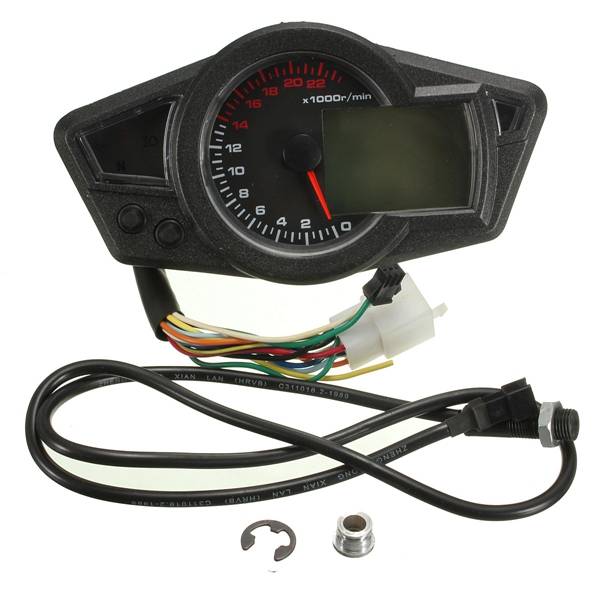

1 x LCD digital Motorcycle odometer speedometer

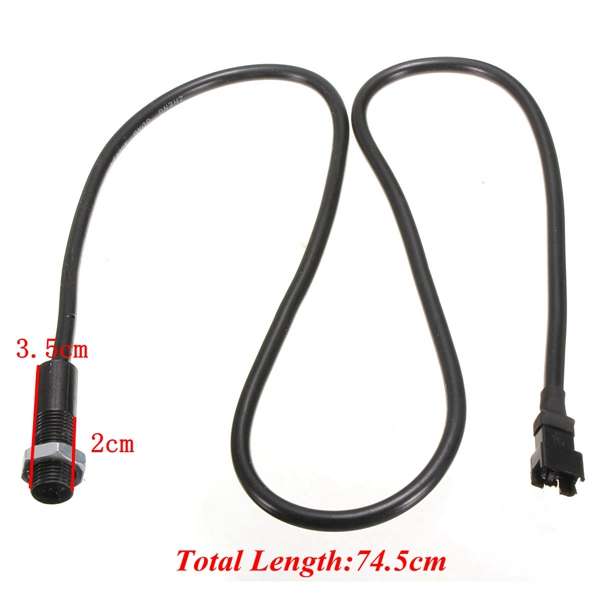

1 x sensor
1 x magnetic steel
